Economical Crimping Machine

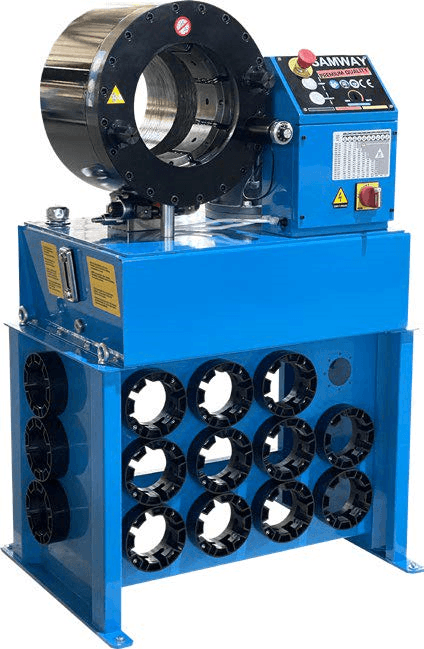

Samway S201 Crimping Machine
Model: S201
Full Automatic Precision Control Affordable 6 inch Industrial Hose Energy Saving and Safety Operation CE Approved
Technical Specifications
Max crimping dia (mm/inch) 1)124/4.88
Max crimping dia with master dies (mm/inch)150/5.9
Max. crimping force (kN)2400
Max. crimping force (tonnage)240
Cycle time 10 mm (s) 2)6.1
Hydraulic hose size (inch)2 ½ *
Industrial hose size (inch)4.88 *
Die set series32/140
Max. opening (mm) 3)+24
Max. opening without dies (mm)164
Master die D/L (mm) 140/120
Master die D/L (inch)5.52-4.73
Motor Power (KW/HP)4.0/5.5(400V 3 Phase)
Oil tank volume80 L
DIMENSIONS (LxWxH)
| Machine (mm) | 780x450x1500 |
|---|---|
| Machine (inch) | 30.7×17.7×59.1 |
| Packaged (mm) | 1040x1020x1560 |
| Packaged (inch) | 40.9×40.2×61.4 |
WEIGHT
| Machine kg/lbs | 430/948 |
|---|---|
| Packaged kg/lbs | 480/1058 |
Die Set 140-Series
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18860/84 | 84 | 110 | 84.0-92.0 |
| 18860/92 | 92 | 110 | 92.0-100.0 |
| 18860/100 | 100 | 110 | 100.0-108.0 |
| 18860/108 | 108 | 110 | 108.0-116.0 |
| 18860/116 | 116 | 110 | 116.0-124.0 |
Die Set 32-Series
| DieSetNo | D(mm) | L(mm) | Crimp.Rang(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | |
| 18506/12 | 12 | 55 | |
| 18506/14 | 14 | 55 | |
| 18506/16 | 16 | 55 | |
| 18506/19 | 19 | 55 | |
| 18506/22 | 22 | 70 | |
| 18506/26 | 26 | 70 | |
| 18506/30 | 30 | 70 | |
| 18506/34 | 34 | 75 | |
| 18506/39 | 39 | 75 | |
| 18506/45 | 45 | 90 | |
| 18506/51 | 51 | 90 | |
| 18506/57 | 57 | 100 | |
| 18506/63 | 63 | 110 | |
| 18506/69 | 69 | 110 | |
| 18506/74 | 74 | 110 | |
| 18506/78 | 78 | 110 |
