Worshop crimping Machine

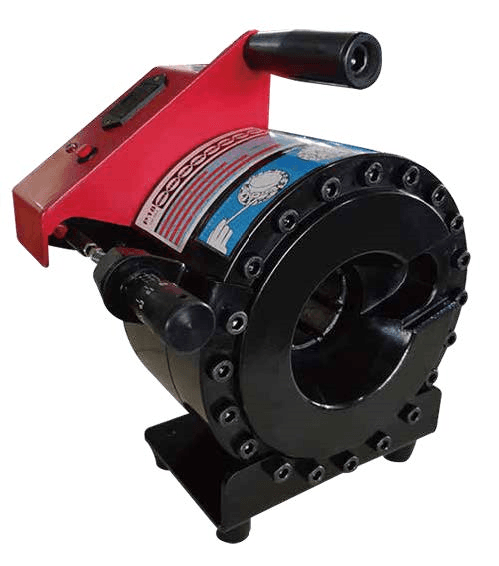

Samway P18LED Crimping machine
Model: P18LED
Elbow 90 degree hose up to 1" portable 1" 4SP crimper No electricity required Optional enerpac pnematic pump Complete die set with led indicator
Technical Specifications
Max hydraulic hose1"4Sp
Crimping Range (mm)4-60
Die TypeP18
Master Die Length(mm)64
Max Opening (mm)+20
Optional hand pumpEnerpac two stage(Pneuatic pump 700 bar)
Crimping force kN1200
controlmicro dail
L*W*H190*180*310
Weight kG22
Standard Die Sets
| DieSetNo | 10 | 12 | 14 | 16 | 19 | 23 | 27 | 31 | 37 |
|---|---|---|---|---|---|---|---|---|---|
| Length | 55 | 55 | 55 | 55 | 55 | 55 | 65 | 65 | 65 |
