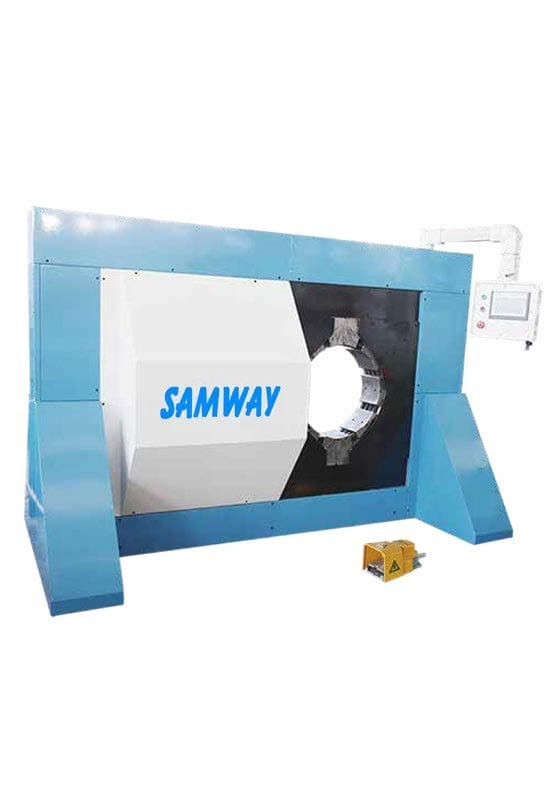

Samway FP195H crimping Machine
Model: FP195H
Up to 480mm OD Crimping SIEMENS Precision Digital Control Low Crimping Height from Ground Die Set length up to 330mm
Technical Specifications
Crimping Range in inch OD17’’
Crimping Range in mm OD480 mm
Recommended Crimping Range160-480 mm
Crimping Force ton1200
Hydraulic hoseAny
Opening mm+150
Hydraulic SystemBy Rexroth
System Power15KW by SIEMENS motor
Automatic Control SystemSIEMENS control system
Separate Hydraulic Power UnitPlace anywhere
Crimping Center above the ground650 mm
DIMENSIONS (LxWxH)
| Machine (mm) | 2580x1780x1100 |
|---|---|
| Machine (inch) | 101.6×70.1×43.3 |
| Packaged (mm) | 2680x1880x1200 |
| Packaged (inch) | 105.5×74.0x47.2 |
| Hydraulic Unit (mm) | 1200x1200x1750 |
| Hydraulic Unit (inch) | 47.2×37.2×68.9 |
| Packaged (mm) | 1300x1300x1850 |
| Packaged (inch) | 51.2×51.2×72.8 |
WEIGHT
| Machine (kg/lbs) | 8500/18739 |
|---|---|
| Packaged (kg/lbs) | 8800/19400 |
| Hydraulic Unit (kg/lbs) | 750/1653 |
| Packaged (kg/lbs) | 800/1764 |
