Cutting Machine

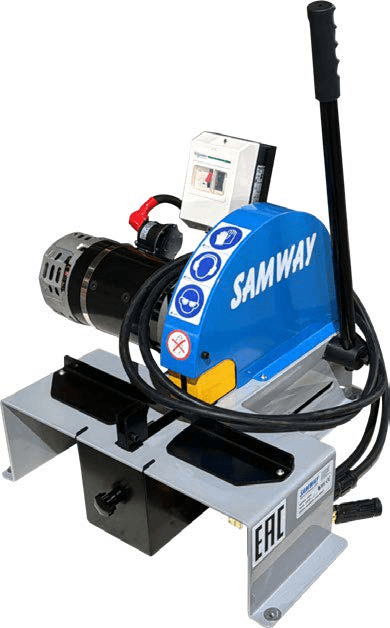

Samway C250DC cutting Machine
Model: C250DC
Designed for Truck or Van use Up to 1 1/2″ 4SP Hydraulic Hose Continuous cutting up to 30 minutes Light weight and compact design Pull to cut
Technical Specifications
Max. hose size (inch) 1)1 ½” 4SP
Diameter (blade) external (mm)250
Diameter (blade) internal (mm)40
Max. hose OD (mm)75
Exhaust outlet OD (mm)100
Motor Power (KW) 2)1.5,24V(400V 3 Phase)
Motor Power (HP) 2)2.0
DIMENSIONS (LxWxH)
| Machine (mm) | 400x350x400 |
|---|---|
| Machine (inch) | 15.7×13.8×15.7 |
| Packaged (mm) | 700x620x590 |
| Packaged (inch) | 27.6×24.4×23.2 |
WEIGHT
| Machine (kg) | 50 |
|---|---|
| Machine (lbs) | 110 |
| Packaged (kg) | 70 |
| Packaged (lbs) | 154 |
