Production crimping Machine

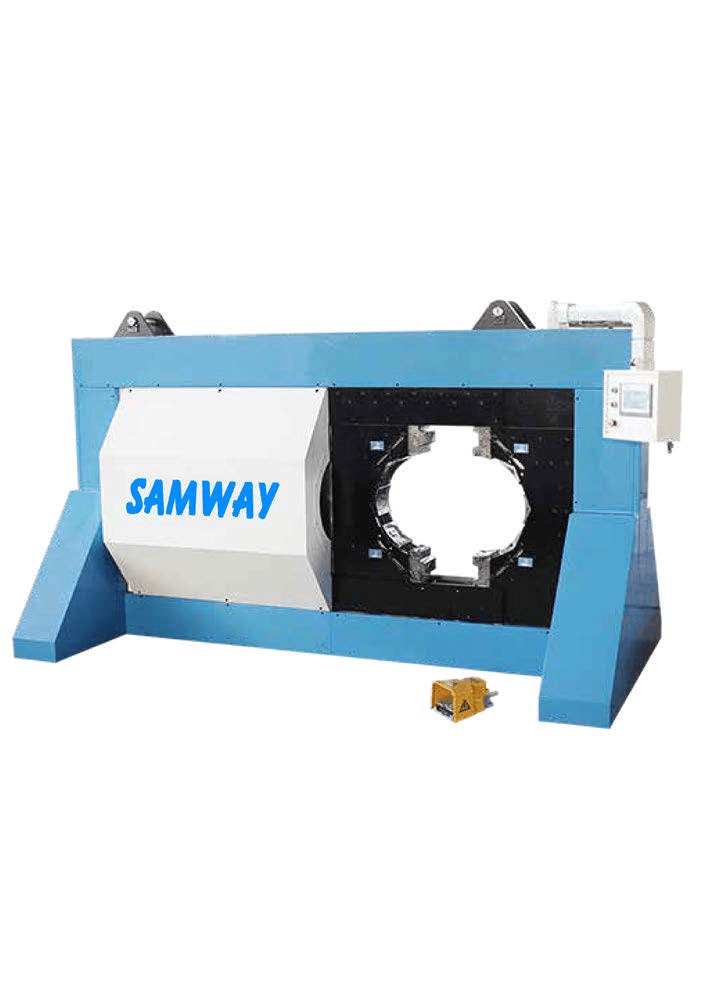

Samway FP185L Crimping machine
Model: Fp185L
Precision Digital Control Quick Change Tool and Die rack Designed for Mass Production Energy Saving and Fast Crimping CE Approved
Technical Specifications
Crimping Range in inch OD15’’
Crimping Range in mm OD440 mm
Recommended Crimping Range160-440 mm
Crimping Force ton 1000
Hydraulic hoseAny
Opening mm+300
Hydraulic SystemBy Rexroth
System Powe15KW by SIEMENS motor
Automatic Control SystemSIEMENS control system
Separate Hydraulic Power UnitPlace anywhere
Crimping Center above the ground650 mm
Master die D/L (inch)12.60/8.66
Motor Power (KW/HP)15/20(400V 3 Phase)
Oil tank volume250 L
DIMENSIONS (LxWxH)
| Machine (mm) | 3780x1780x1100 |
|---|---|
| Machine (inch) | 148.8×70.1×43.3 |
| Packaged (mm | 3880x1880x1200 |
| Packaged (inch) | 152.8×74.0x47.2 |
| Hydraulic Unit (mm) | 1200x1200x1750 |
| Hydraulic Unit (inch) | 47.2×37.2×68.9 |
| Packaged (mm) | 1300x1300x1850 |
| Packaged (inch) | 51.2×51.2×72.8 |
WEIGHT
| Machine (kg/lbs) | 9500/20944 |
|---|---|
| Packaged (kg/lbs) | 9800/21605 |
| Hydraulic Unit (kg/lbs) | 750/1653 |
| Packaged (kg/lbs) | 800/1764 |
