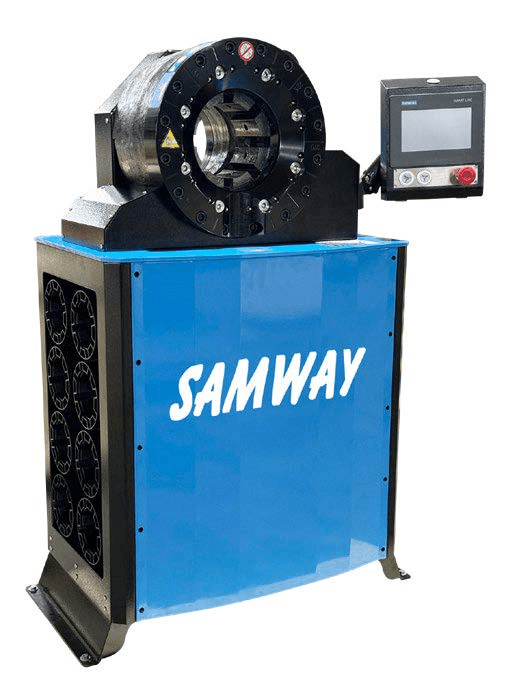

Samway H60 Crimping Machine
Model: H60
Up to 4″ Industrial Hose No axial movement! Production Crimper SIEMENS Touch Screen Quick Change tool and die rack
Technical Specifications
Max crimping dia (mm) 1) 124
Max crimping dia (inch) 1)4.88
Max crimping force (kN)4200
Max crimping force (tonnage)420
Cycle time 10 mm (s) 2)5.8
Hose size ID (inch)4
Die set series 32/140
Max opening (mm) +60
Max opening without dies (mm)200
Master die D/L (mm)140/120
Master die D/L (inch)5.52-4.73
Motor Power (KW/HP) 3)4.0/5.5 1.5/2.0 (400V 3 Phase)
Oil tank volume50 L
DIMENSIONS (LxWxH)
| Machine (mm) | 840x600x1390 |
|---|---|
| Machine (inch) | 33.1×23.6×54.7 |
| Packaged (mm) | 1040x740x1480 |
| Packaged (inch) | 40.9×29.1×58.3 |
WEIGHT
| Machine (kg) | 510 |
|---|---|
| Machine (lbs) | 1124 |
| Packaged (kg) | 548 |
| Packaged (lbs) | 1208 |
Die Set 140-series
| DieSetNo | D(mm) | L(mm) | Crimp.Range(mm) |
|---|---|---|---|
| 18860/84 | 84 | 110 | 84.0-92.0 |
| 18860/92 | 92 | 110 | 92.0-100.0 |
| 18860/100 | 100 | 110 | 100.0-108.0 |
| 18860/108 | 108 | 110 | 108.0-116.0 |
| 18860/116 | 116 | 110 | 116.0-124.0 |
Die Set 32 Series
| DieSetNo | D(mm) | L(mm) | Crimp.Range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.016.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.9.45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-75.0 |
| 18506/74 | 74 | 110 | 74.0-80.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
