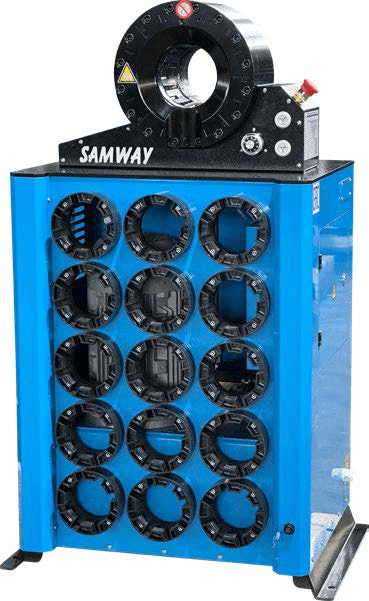

Samway H50 crimping machine
Model: H50
Full Automatic Control with Foot pedal Quick Change Tool and Die rack Energy Saving and Safety Operation Ideal for elbow 90 degree fittings Comfort optimization working position
Technical Specifications
Max crimping dia (mm/inch) 1)87/3.42
Max crimping dia with master dies (mm/inch)109/4.3
Max. crimping force (kN)2000
Max. crimping force (tonnage)200
Cycle time 10 mm (s) 2)3)4
Hydraulic hose size (inch)2 *
Industrial hose size (inch)3.42 *
Die set series32
Max. opening (mm) 4)+28
Max. opening without dies (mm)132
Master die D/L (mm)99/80
Master die D/L (inch)3.90/3.15
Motor Power (KW/HP)4.0/5.5 1.5/2.0 (400V 3 Phase)
Oil tank volume27 L
DIMENSIONS (LxWxH)
| Machine (mm) | 650x600x1250 |
|---|---|
| Machine (inch) | 650x600x1250 |
| Packaged (mm) | 900x640x1480 |
| Packaged (inch) | 35.4×25.2×58.3 |
WEIGHT
| Machine (kg/lbs) | 280/617 |
|---|---|
| Packaged (kg/lbs) | 295/650 |
Die Set 32-Series
| DieSetNo | D(mm) | L(mm) | CrimpRange(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-75.0 |
| 18506/74 | 74 | 110 | 74.0-80.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
