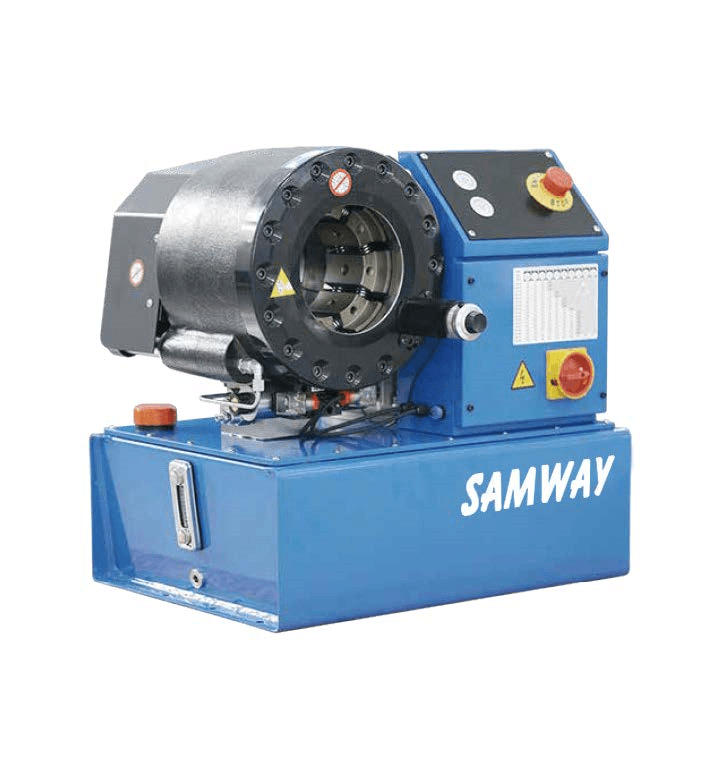

Samway p32 crimping machine
Model: P32
Full Automatic Control with Foot pedal UP To 2″ 4SP Hydraulic Hose Energy Saving and Safety Operation
Technical Specifications
Max crimping dia (mm/inch) 1)87/3.42
Max crimping dia (mm/inch) 1)109/4.3
Max. crimping force (kN)2800
Max. crimping force (tonnage)280
Cycle time 10 mm (s) 2)3)4
Hydraulic hose size (inch)2 *
Industrial hose size (inch)3.42 *
Die set series32
Max. opening (mm) 4)+33
Max. opening without dies (mm132
Master die D/L (mm)99/80
Master die D/L (inch)3.90/3.15
Motor Power (KW/HP)4.0/5.5 1.5/2.0 (12/24V DC)
Oil tank volume45 L
TaDIMENSIONS (LxWXH)
| Machine (mm) | 680x595x650 |
|---|---|
| Machine (inch) | 26.8×23.4×25.6 |
| Packaged (mm) | 26.8×23.4×25.6 |
| Packaged (inch) | 30.7×27.4×29.5 |
WEIGHT
| Machine (kg/lbs) | 250/551 |
|---|---|
| Packaged (kg/lbs) | 260/573 |
Die Set 32-Series
| DieSetNo | D(mm) | L(mm) | CrimpRange(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-75.0 |
| 18506/74 | 74 | 110 | 74.0-80.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
