Worshop crimping Machine

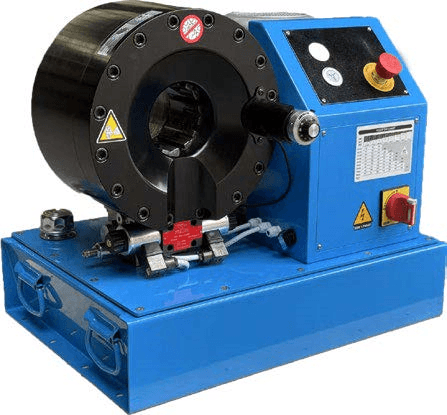

Samway P19 crimping machine
Model: P19
Full Automatic Control with Foot pedal Quick Change Tool and Die rack Energy Saving and Safety Operation Ideal for elbow 90 degree fittings Designed for elbow fitting hose
Technical Specifications
Max crimping dia (mm/inch) 1)58/2.28
Max crimping dia with master dies (mm/inch)70/2.76
Max crimping force (kN) 1300
Max crimping force (tonnage)130
Cycle time 10 mm (s) 2) 3)4
Hydraulic hose size (inch)1” 4SP
Industrial hose size (inch)2”
Die set seriesS6
Max opening (mm)+28
Max opening without dies (mm)98
Master die D/L (mm) 70/80
Master die D/L (inch)2.76/3.15
Motor Power (KW/HP) 3)2.2/3
Oil tank volume 27 L
DIMENSIONS (LxWxH)
| Machine (mm) | 600x430x520 |
|---|---|
| Machine (inch) | 23.6×16.9×20.5 |
| Packaged (mm) | 700x530x620 |
| Packaged (inch) | 27.6×20.9×24.4 |
Weight
| Machine (kg) | 140 |
|---|---|
| Machine (lbs) | 309 |
| Packaged (kg) | 155 |
| Packaged (lbs) | 342 |
DieSet S6-Series
| DieSetNo | D(mm) | L(mm) | Crimp.Range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-17.0 |
| 18506/17 | 17 | 55 | 17.0-20.0 |
| 18506/20 | 20 | 55 | 20.0-24.0 |
| 18506/24 | 24 | 55 | 24.0-28.0 |
| 18506/28 | 28 | 75 | 28.0-32.0 |
| 18506/32 | 32 | 75 | 32.0-36.0 |
| 18506/36 | 36 | 75 | 36.0-40.0 |
| 18506/40 | 40 | 90 | 40.0-44.0 |
| 18506/44 | 44 | 90 | 44.0-50.0 |
| 18506/50 | 50 | 90 | 50.0-52.0 |
| 18506/52 | 52 | 90 | 52.0-58.0 |
| 18506/58 | 58 | 90 | 58.0-64.0 |
