Worshop crimping Machine

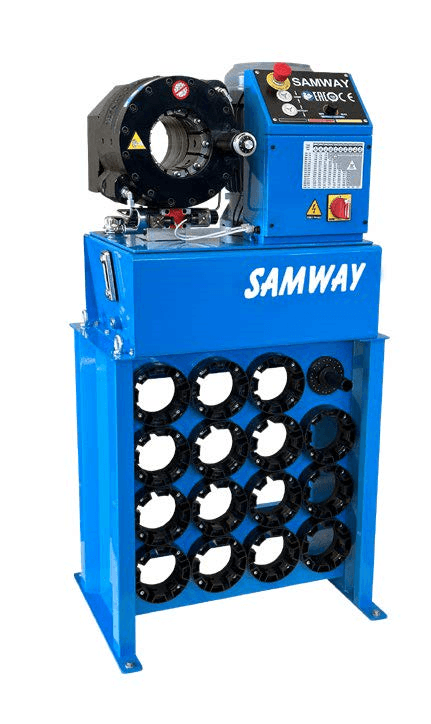

samway p20Q crimping machine
Model: P20Q
Full Automatic Control with foot pedal Quick Change Tool and Die rack Energy Saving and Safety Operation TUV CE Approved
Technical Specifications
Max crimping dia (mm/inch) 1)87/3.42
Max crimping dia with master dies (mm/inch)109/4.3
Max. crimping force (kN)1600
Max. crimping force (tonnage)160
Cycle time 10 mm (s) 2)3)4
Hydraulic hose size (inch) 1 ½ *
Industrial hose size (inch)2.40 *
Die set series32
Max. opening (mm) 4)32
Max. opening without dies (mm) 124
Master die D/L (mm)99/80
Master die D/L (inch)3.90/3.15
Motor Power (KW/HP) 3)3.0/4.0 1.5/2.0 (400V 3 Phase)
Oil tank volume45 L
DIMENSIONS (LxWxH)
| Machine (mm) | 680x600x1400 |
|---|---|
| Machine (inch) | 26.8×23.6×55.1 |
| Packaged (mm) | 820x1250x980 |
| Packaged (inch) | 32.3×49.2×38.6 |
WEIGHT
| Machine (kg/lbs) | 270/595 |
|---|---|
| Packaged (kg/lbs) | 300/661 |
DIE SET 20-Series
| DieSetNo | D(mm) | L(mm) | Crimp.Rang(mm) |
|---|---|---|---|
| 18506/10 | 10 | 60 | 10.0-12.0 |
| 18506/12 | 12 | 60 | 12.0-14.0 |
| 18506/14 | 14 | 60 | 14.0-16.0 |
| 18506/16 | 16 | 60 | 16.0-19.0 |
| 18506/19 | 19 | 60 | 19.0-22.0 |
| 18506/22 | 22 | 75 | 22.0-26.0 |
| 18506/26 | 26 | 75 | 26.0-30.0 |
| 18506/30 | 30 | 75 | 30.0-34.0 |
| 18506/34 | 34 | 80 | 34.0-39.0 |
| 18506/39 | 39 | 80 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 100 | 63.0-69.0 |
| 18506/69 | 69 | 100 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-80.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
