Rebar Crimping Machine

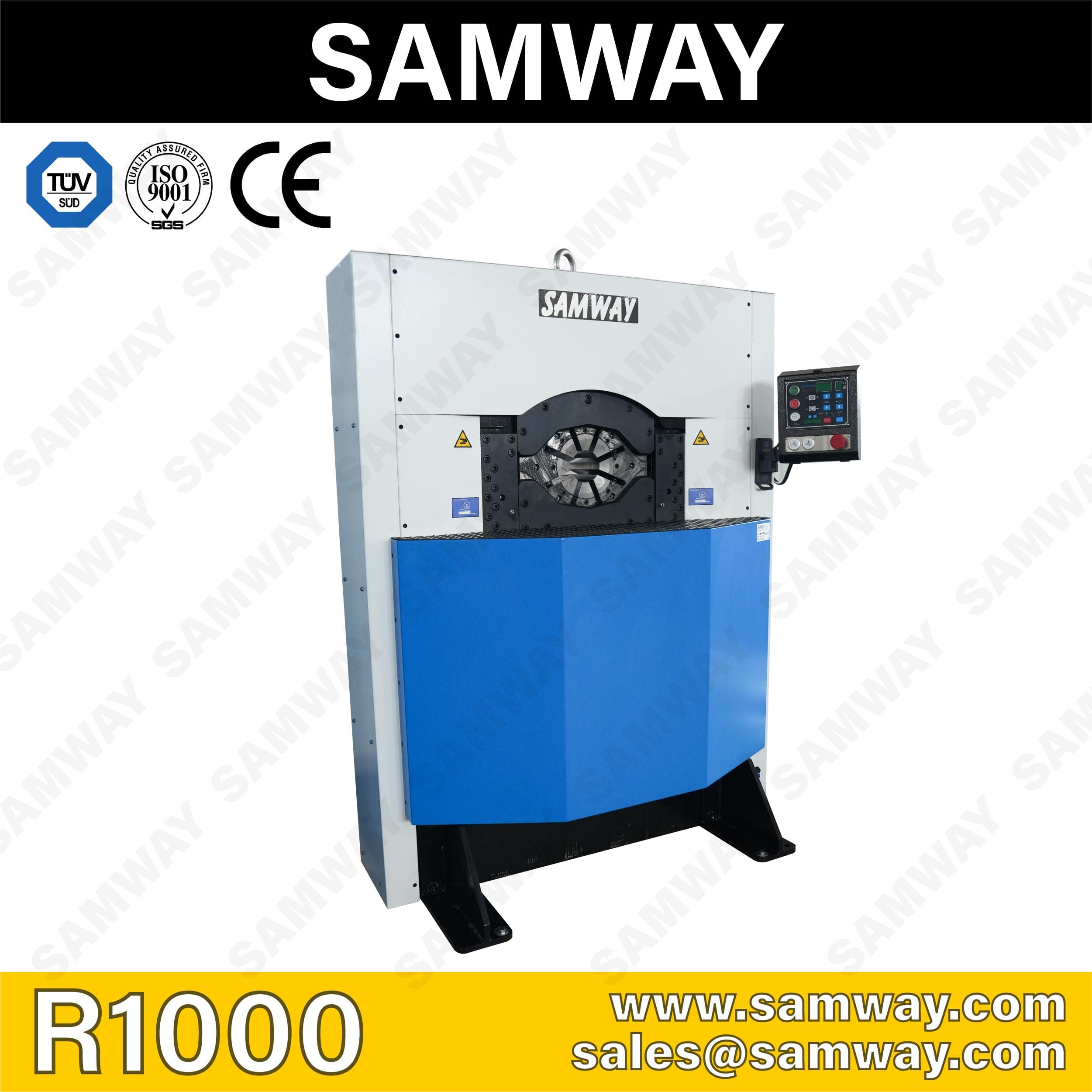

SAMWAY R1000 1000 TON CONCRETE REBAR ASSEMBLY MACHINE
Model: R1000 1000
* Precision Digital Control * Designed for Mass Production * Energy Saving and Fast Crimping * CE Approved * Designed and Manufactured for Concrete Rebar Assembly
Technical Specifications
max Crimping dia(mm/inch)1)124/4.88
max crimping dia with master dies(mm/inch)150/5.9
Max crimping force(KN)10000
Max crimping force(tonnage)1000
Cycle time 10 mm(s)2)2.3(S-model:1.6)
Hydraulic coupler size (inch)2"
Industrial size(inch)4"
Die set series32/140
Max opening (mm)3)+40
max opening without dies(mm)180
Master die D/L (mm)140/200
Master die D/L (inch)5.52/3.82
Motor power (KW/Hp)7.5/10(400V 3 Phase)
Oil tank volume135L
DIMENSIONS
| Machine(mm) | 1400x900x1750 |
|---|---|
| Machine(inch) | 55.1x35.4x68.9 |
| Packaged(mm) | 1500x1000x1850 |
| Packaged(inch) | 59.1x39.4x72.8 |
| Hydraulic(mm) | 820x620x1050 |
| Hydraulic(inch) | 32.3x24.4x41.3 |
| Packaged(mm) | 920x720x1150 |
| Packaged(inch) | 36.2x28.3x45.3 |
WEIGHT
| Machine(kg/lbs) | 4500/9921 |
|---|---|
| Packaged(kg/lbs) | 4550/1031 |
| Hydraulic(kg/lbs) | 500/1102 |
| packaged(kg/lbs) | 515/1135 |
