Flaring Machine

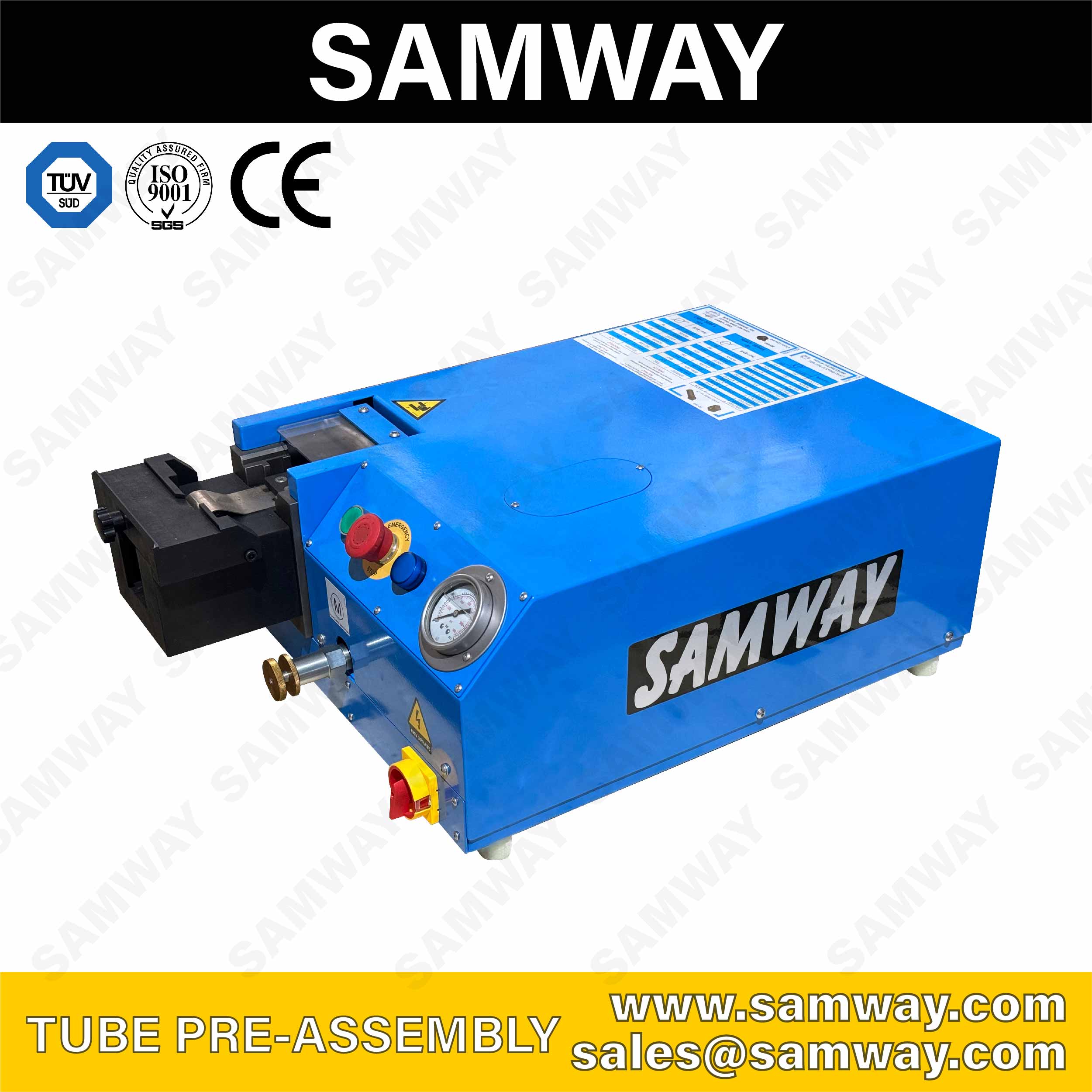

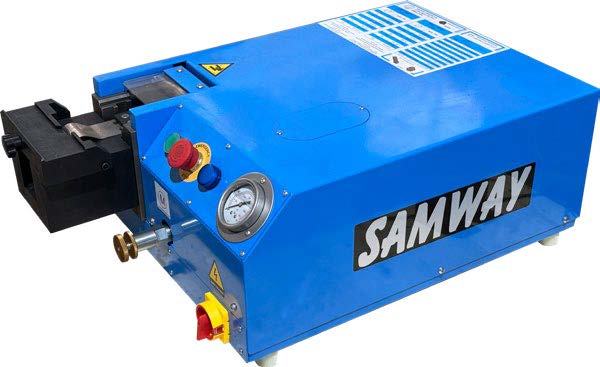

SAMWAY TUBE PRE-ASSEMBLY & TUBE FLARING MACHINE
Model: Tube Flaring Machine
* 6-42 mm Tube pre-assembly
Options & Accessories
| Options | |
|---|---|
| 110V/220V 1 Phase | 230V/440V/480V 3 phase |
| 37" Flaring |
Technical Specifications
pre-assembling 6>42x4mm(0.236">1.654x0.158")
37 Flaring 6>42x4mm(0.236">1.654x0.158")
materials AISI 316 TI-ST 37.4
Standard voltage400V 50hZ 3pH
motor power0.75KW(400V 3 Phase)
Oilincl.
37 Flaring Block OPTIONAL
tool Holder OPTIONAL
1/2v Voltage OPTIONAL
Special voltage OPTIONAL
DIMENSIONS
| Machine(mm) | 430x600x270 |
|---|---|
| Machine(inch) | 16.9x23.6x10.6 |
| packaged(mm) | 530x700x370 |
| packaged(inch) | 20.9x27.6x14.6 |
Pre-Assembly Tool
| Machine(kg/lbs) | 58/128 |
|---|---|
| packaged(kg/lbs) | 68/150 |
New Table
| 06L | 06S | 08L | 08S | 10L | 10S |
|---|---|---|---|---|---|
| 12L | 12S | 14S | 15L | 16S | 18L |
| 20S | 22L | 25S | 28L | 30S | 35L |
| 35L | 38S | 42L |
Stopper of any size
| 06mm | 08mm | 10mm | 12mm | 14mm | 15mm |
|---|---|---|---|---|---|
| 16mm | 18mm | 20mm | 22mm | 25mm | 28mm |
| 30mm | 35mm | 38mm | 42mm |
