Flaring Machine

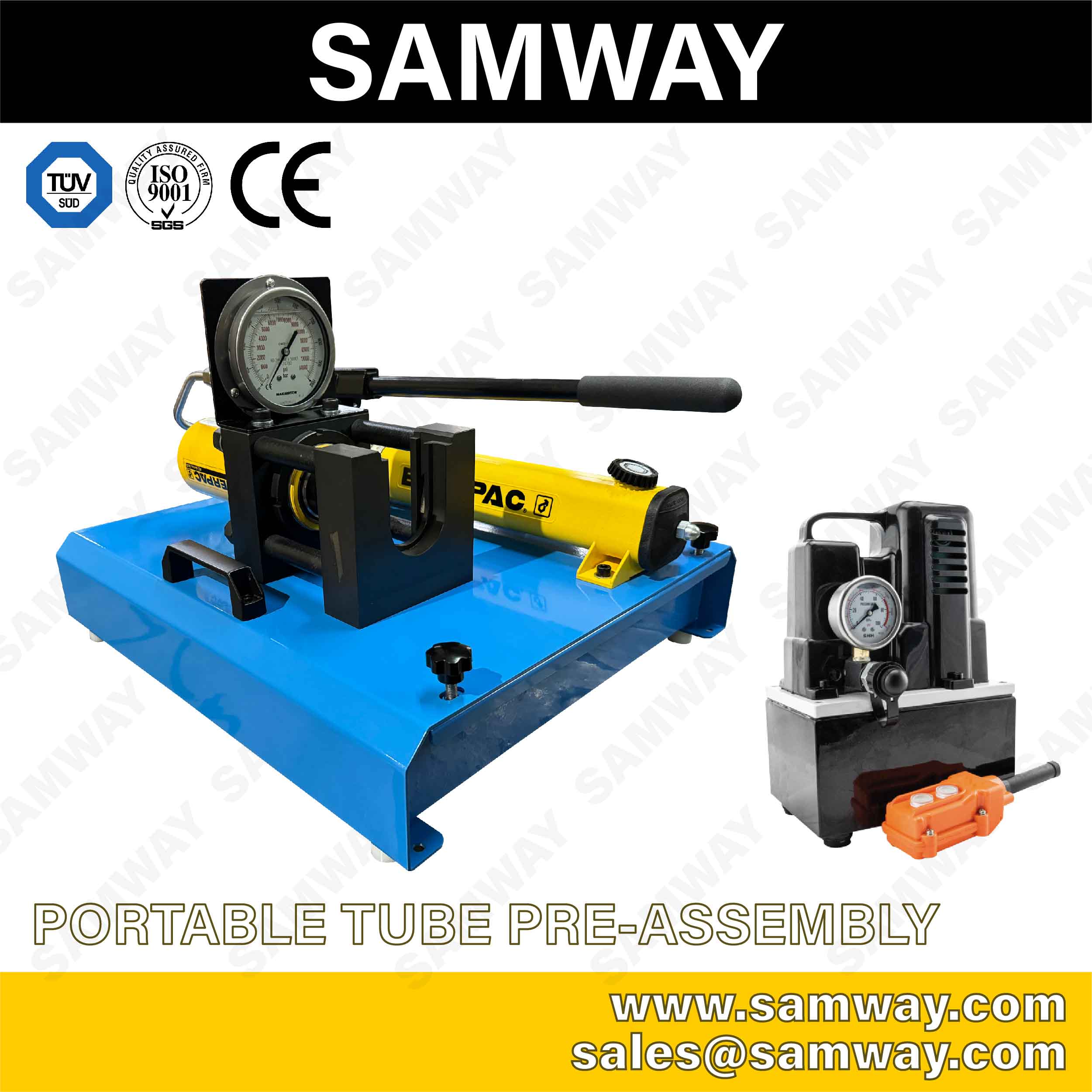

SAMWAY PORTABLE TUBE PRE-ASSEMBLY FLARING MACHINE
Model: Assembly flaring machine
* 6-42 mm Tube pre-assembly
Options & Accessories
| Options | |
|---|---|
| 110V/220V 1 Phase | 230V/440V/480V 3 Phase |
| Fast and Easy 37"flaring |
Technical Specifications
pre-assembling6>42x4mm(0.236">1.654x0.158")
37 Flaring6x4>42x4mm(0.236"x0.158">1.654"x0.158")
materialsAISI 316 TI-ST 37.4
powerHand pump
Oilincl.
37 Flaring BlockOPTIONAL
tool HolderOPTIONAL
1/2v VoltageOPTIONAL
Special voltageOPTIONAL
DIMENSIONS
| Machine(mm) | 500x600x400 |
|---|---|
| Machine(inch) | 19.7x23.6x15.7 |
| Packaged(mm) | 600x700x500 |
| Packaged(inch) | 23.6x27.6x19.7 |
WEIGHT
| Machine(kg/lbs) | 40/88 |
|---|---|
| Packaged(kg/lbs) | 50/110 |
Pre-Assembly Tool
| 06L | 06S | 08L | 08S | 10L | 10S |
|---|---|---|---|---|---|
| 12L | 12S | 14S | 15L | 16S | 18L |
| 20S | 22L | 25S | 28L | 30S | 35L |
| 35L | 38S | 42L |
Stopper of ANY size
| 06mm | 08mm | 10mm | 12mm | 14mm | 15mm |
|---|---|---|---|---|---|
| 16mm | 18mm | 20mm | 22mm | 25mm | 28mm |
| 30mm | 35mm | 38mm | 42mm |
