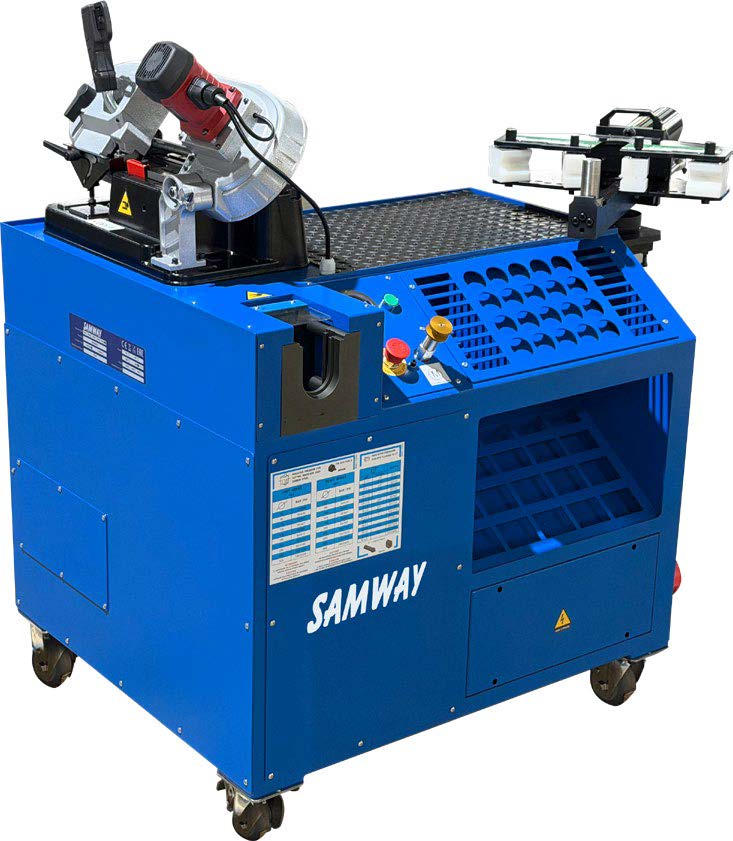

SAMWAY T642F TUBE WORK STATION
Model: T642F
Tube cut off saw * Tube bending Modular * Tube Pre-assembly Modular * Tube Flaring Modular * Tube Internal & External Deburring Modular * Air compressor
Options & Accessories
| Options | |
|---|---|
| Servo Bending tool with touch screen | 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
Technical Specifications
24 pre-assembling6-42x4mm
37 flarimg6-42x4mm(1/4"-1"1/2x0.15')
cuttingMax 100mm(3.9")
Bending6-42x4mm91/4"-1" 1/2x0.15')
Deburning6-42mm(1/4"-1" 1/2)
MaterialsAISI 316 TI-ST 37.4
Max Capacity steel tube6-42mm
Steel pipe1/4-1 1/4"
Power5Kw
DIMENSIONS
| Machine(mm) | 1515x1000x1210 |
|---|---|
| Machine(inch) | 59.6x39.3x47.6 |
| Packaged(mm) | 1615x1100x1310 |
| Packaged(inch) | 63.6x43.3x51.6 |
wEIGHT
| Machine(kg/lbs) | 330/728 |
|---|---|
| packaged(kg/lbs) | 380/838 |
