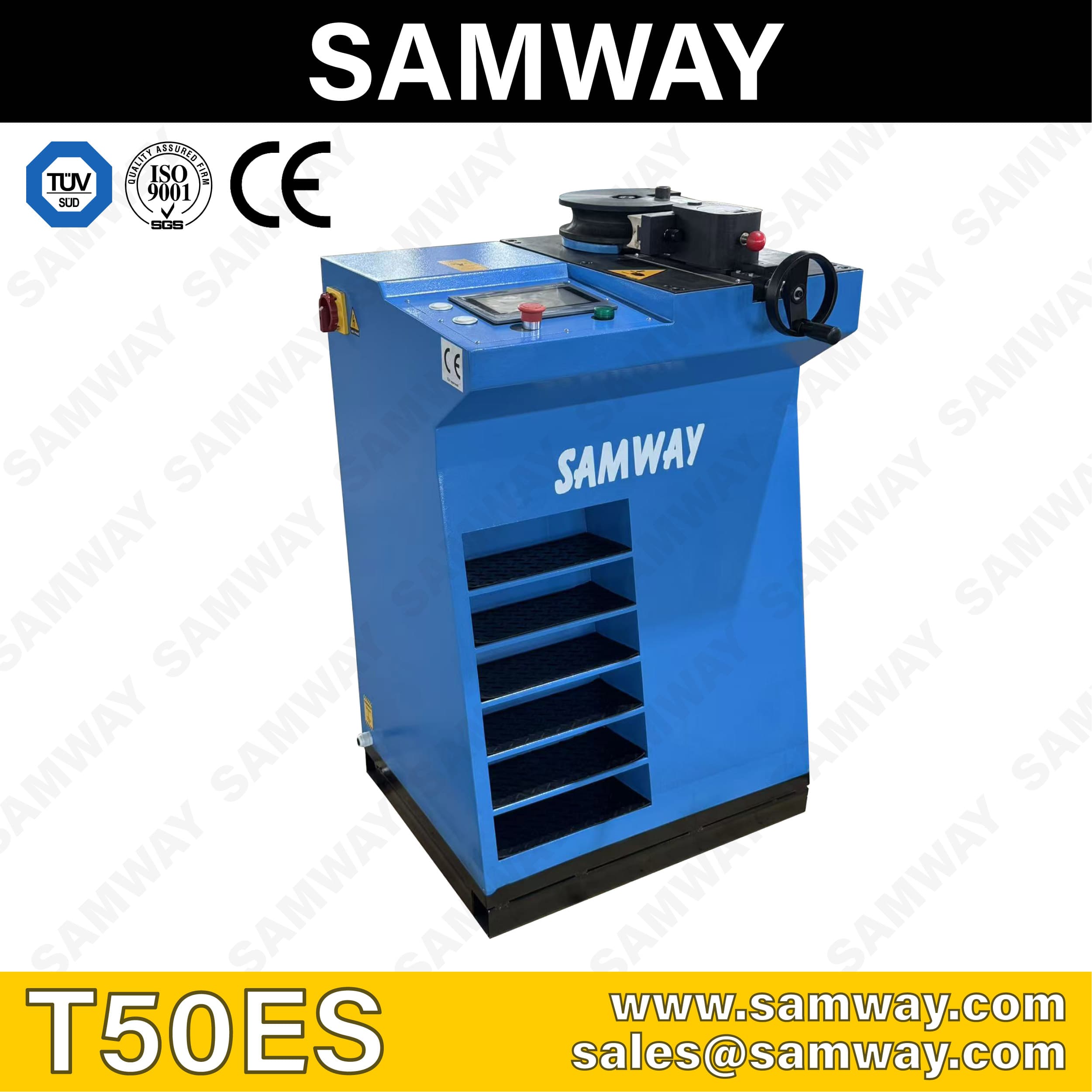

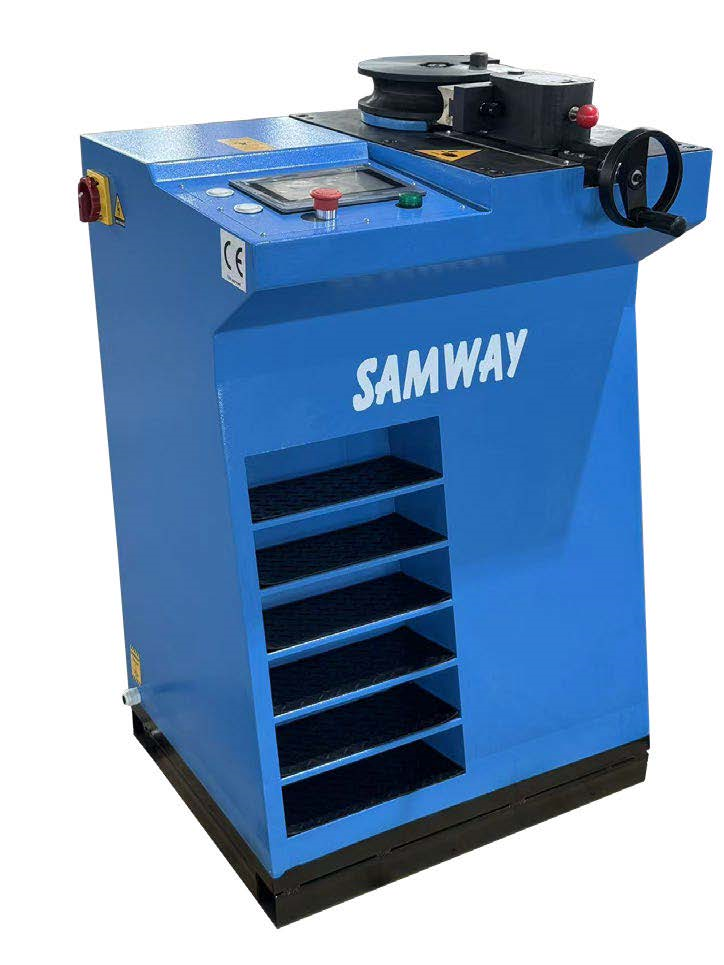

SAMWAY T50ES TUBE BENDING MACHINE
Model: T50ES
* PEDAL * TUBE DRIVING SYSTEM * VARIOUS VOITAGE AVAILABLE
Options & Accessories
| Options | |
|---|---|
| Pedal | Tube Driving system |
| Various voltage available |
Technical Specifications
ControlSIEMENS Touch control
DriveSIEMENS Servo
Tube Bending Diameter5-50mm(1/4"-1" 1/2)
Bending Diameter Aisi 316 Ti38x4-42x3mm(1" 1/4x0.15"-1 1/2x0.12")
Bending Diameter St 37.438x4-42x3(1"1/4x0.20"-1 1/2x0.12")
Max bending Angle180(degree)
90(degree)6Sec
Standard voltage400V 50Hz 3PH
Motor power2.2KW(3HP)
DIMENSIONS
| Machine(mm) | 620x740x1050 |
|---|---|
| Machine(inch) | 24.4x29.1x41.3 |
| packaged(mm) | 720x840x1150 |
| Packaged(inch) | 28.3x33.1x45.3 |
WEIGHT
| Machine(kg/lbs) | 185/408 |
|---|---|
| packaged(kg/lbs) | 205/452 |
