Economical Crimping Machine

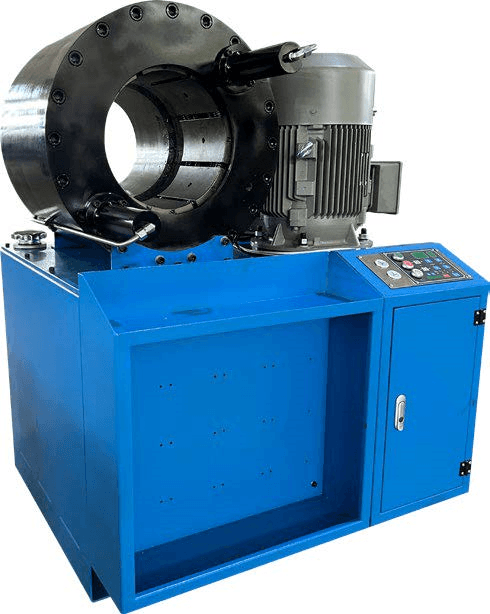

SAMWAY S280 CRIMPING MACHINE
Model: S280
* Full Automatic Control with Foot pedal * 10” Industrial Hose * Energy Saving and Safety Operation
Options & Accessories
| Options | |
|---|---|
| die rack | quick change tool |
| backstop device | control by pressure |
| 110V/220V 1 phase | 230V/440V/480V 3 phase |
Technical Specifications
Industrial Hose10"
Max hydraulic hose4"6SP
Crimping Range (mm)4-280
Die TypeP32
Crimping Speed Second5
Max Opening(mm01)+50
Motor Power (KW/HP)1)&.5/10.0(400V 3 Phase)
Crimping Force(KN)15000
Crimping Per Hour450
foot pedalIncluded
Noise Level (dBA)65
Protection ClassIP56
DIMENSIONS
| Machine(mm) | 800x1700x1750 |
|---|---|
| Machine(inch) | 31.5x66.9x68.9 |
| Packaged(mm) | 1150x1150x1600 |
| Packaged(inch) | 45.3x45.3x63.0 |
WEIGHT
| Machine(kg/lbs) | 1300/2866 |
|---|---|
| Packaged(kg/lbs) | 1400/3086 |
