Economical Crimping Machine

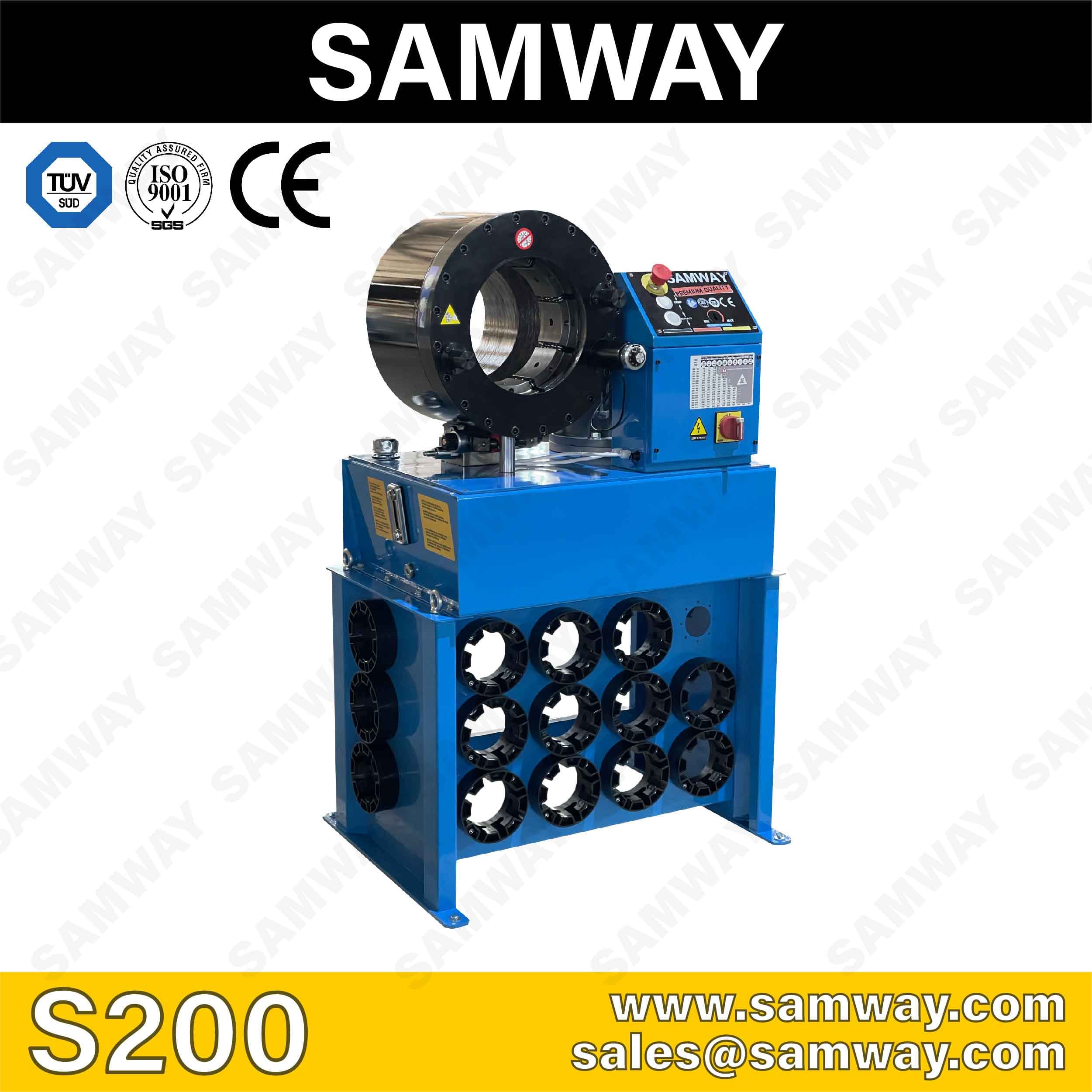

SAMWAY S200 CRIMPING MACHINE
Model: S200
* Full Automatic Precision Control * Affordable 6 inch Industrial Hose * Energy Saving and Safety Operation * CE Approved
Options & Accessories
| Options | |
|---|---|
| backstop device | 110V/220V 1 Phase |
| 230V/440V/480V 3 phase |
Technical Specifications
Max Hose6"
Maximum Industrial Hose205mm ID
Crimping Range(mm)10-205
Die Type51
Master Die Length(mm)80
Max Opening(mm)1)+24
Motor Power(KW/HP)1)4.0/5.0(400V 3 Phase)
Crimping Force(KN)2400
Crimpings per Hour450
Foot Pedalincluded
Noise Level (dBA)65
Protection ClassIP56
DIMENSIONS
| Machine(mm) | 780x450x1500 |
|---|---|
| Machine(inch) | 30.7x17.7x59.1 |
| Packaged(mm) | 880x550x1650 |
| Packaged(inch) | 34.6x21.7x65.0 |
WEIGHT
| Machine(kg/lbs) | 430/948 |
|---|---|
| Packaged(kg/lbs) | 450/992 |
