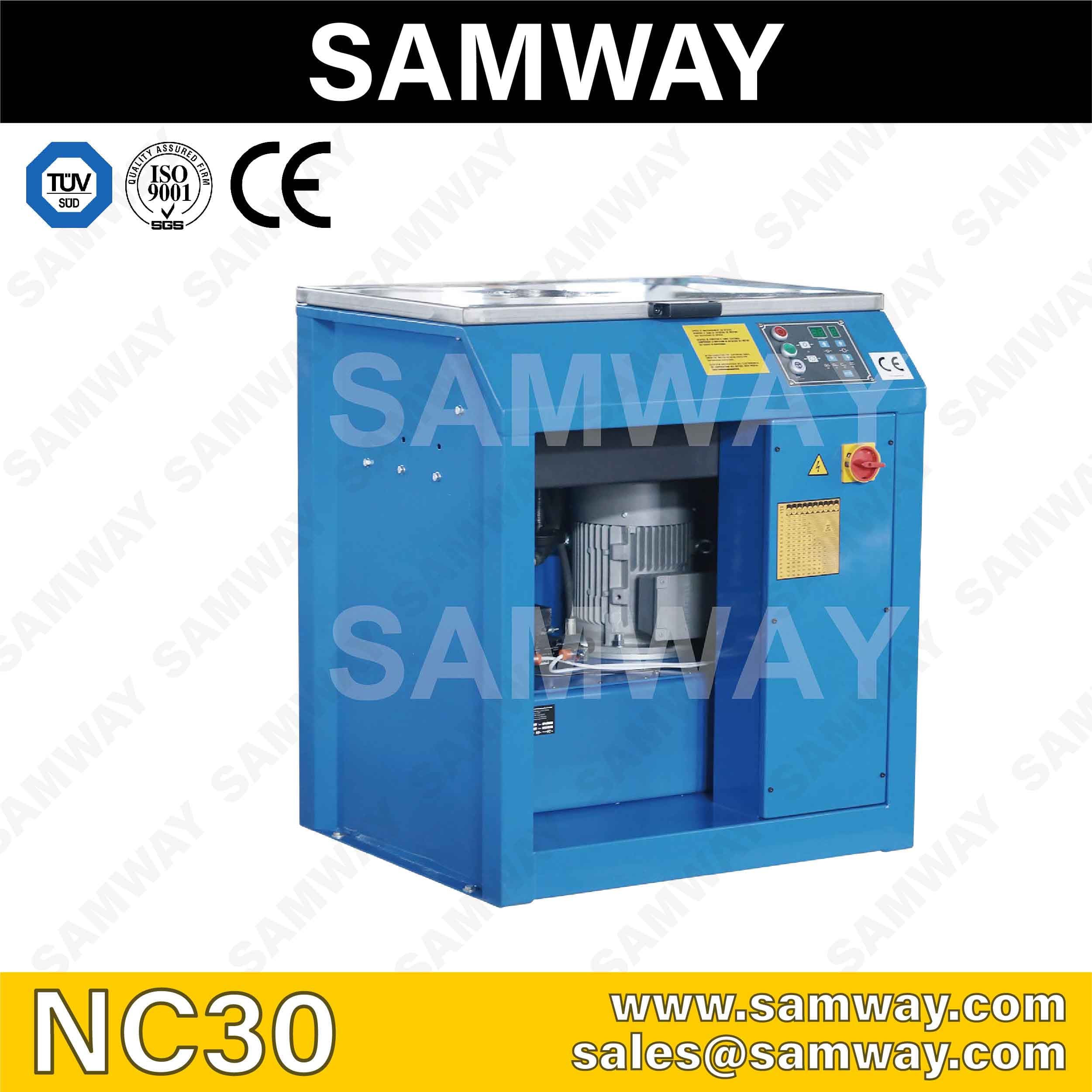

SAMWAY NC30 NUT CRIMPING MACHINE
Model: NC30
* Precision Digital Control * Main Parts made in Germany * Designed for Mass Production * Energy Saving and Safety Operation * Europe CE Approved
Options & Accessories
| Options | |
|---|---|
| Foot pedal (z-model) | auto greasing G3 |
| oil condition monitoring OCM | quality control ICC3 |
| graphical quality control ICC4 | remote control unit R2 (double hand) |
| interface pack ETH (communication TCPNP&UDP) | A3 signal |
| bar code reader BCR | 110V/220V 1 Phase |
| 230V/440V/480V 3 phase |
Technical Specifications
Max crimping range (mm)12-63
Max crimping range (inch)0.47-2.48
Max crimping force(KN)660
Max crimping force (tonnage)66
Cycle time 10 mm(S)2)1.4
hose size ID(inch)2
Die set seriesNC30
Max opening (mm)4)+26
Max opening without dies(mm)125
Master die D/L (mm)99/35
Master die D/L (inch)3.90/1.38
Motor power (KW/HP)3)4.0/5.0(400V 3 Phase)
Oil tank Volume50L
Z-model availability1YES
DIMENSIONS
| machine(mm) | 685x1000x940 |
|---|---|
| Machine(inch) | 27.0x39.4x37.0 |
| packaged(mm) | 785x1100x1040 |
| packaged(inch) | 30.9x43.3x40.9 |
WEIGHT
| Machine(kg/lbs) | 380/838 |
|---|---|
| Packaged(kg/lbs) | 410/904 |
DIE SET NC30-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 702044/12 | 12 | 3 | 12.0-14.0 |
| 702044/14 | 14 | 3 | 14.0-16.0 |
| 702044/16 | 16 | 4 | 16.0-19.0 |
| 702044/19 | 19 | 4 | 19.0-22.0 |
| 702044/22 | 22 | 4.5 | 22.0-26.0 |
| 702044/26 | 26 | 4.5 | 26.0-30.0 |
| 702044/30 | 30 | 5 | 30.0-34.0 |
| 702044/34 | 34 | 5 | 34.0-39.0 |
| 702044/39 | 39 | 5 | 39.0-45.0 |
| 702044/45 | 45 | 5 | 45.0-51.0 |
| 702044/51 | 51 | 5 | 51.0-57.0 |
| 702044/57 | 57 | 5 | 57.0-63.0 |
