Nut Crimping Machine

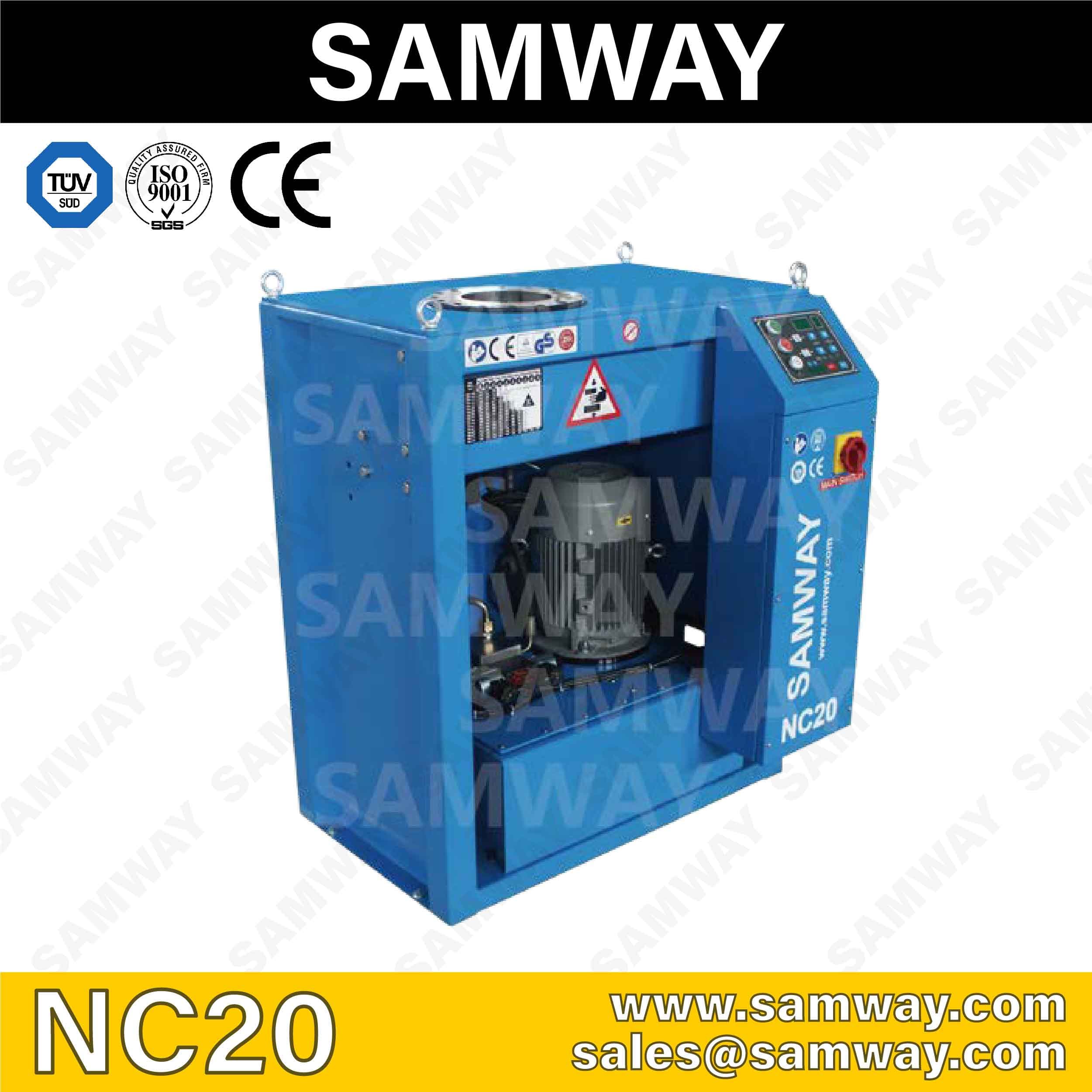

SAMWAY NC20 CRIMPING MACHINE
Model: NC20
* Precision Digital Control * Main Parts made in Germany *Designed for Mass Production *Energy Saving and Safety Operation *Europe CE Approved
Options & Accessories
| Options | |
|---|---|
| Foot pedal (Z-model) | Auto greasing G3 |
| Oil Condition Monitoring OCM | Quality control ICC3 |
| Graphical quality control ICC4 | Remote control unit R2 (double hand) |
| Interface pack ETH (Communication TCP/IP & UDP) | 3 signal |
| Bar Code Reader BCR | 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
Technical Specifications
Max crimping range (mm)12-49
Max crimping range (inch)0.47-1.93
Max crimping force(KN)500
Max crimping force (tonnage)50
Cycle time 10 mm(S)201.5
hose size ID(inch)1 1/4
Die set seriesNc20
Max opening (mm)4)+18
Max opening without dies(mm)117
Master die D/L (mm)99/22
Master die D/L (inch)3.90/0.87
Motor power (KW/HP)3)4.0/5.0 (400V 3 Phase)
Oil tank Volume50L
Z-model availabilityYES
DIMENSIONS
| Machine(mm) | 685x1000x940 |
|---|---|
| Machine(inch) | 27.0x39.4x37.0 |
| Packaged(mm) | 950x950x1130 |
| Packaged(inch) | 37.4x37.4x44.5 |
WEIGHT
| Machine(kg/lbs) | 285/628 |
|---|---|
| Packaged(kg/lbs) | 320/705 |
DIE SET NC20-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18546/12 | 12 | 3 | 12.0-16.0 |
| 185456/16 | 16 | 4 | 16.0-22.0 |
| 18546/22 | 22 | 4.5 | 22.0-27.0 |
| 18546/27 | 27 | 5 | 27.0-34.0 |
| 18546/34 | 34 | 5 | 34,0-41.0 |
| 18546/41 | 41 | 5 | 41.0-49.0 |
