Cutting Machine

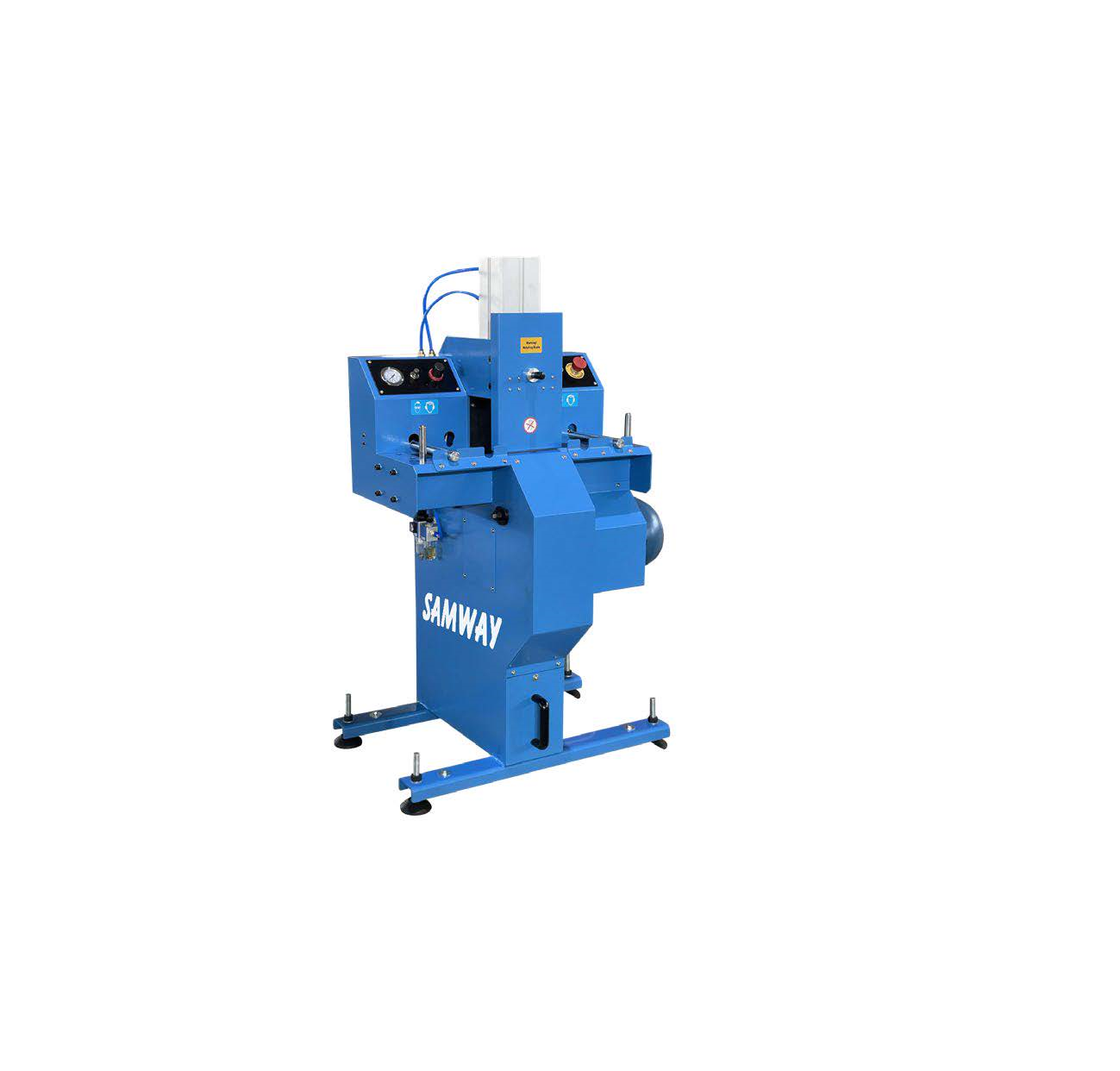

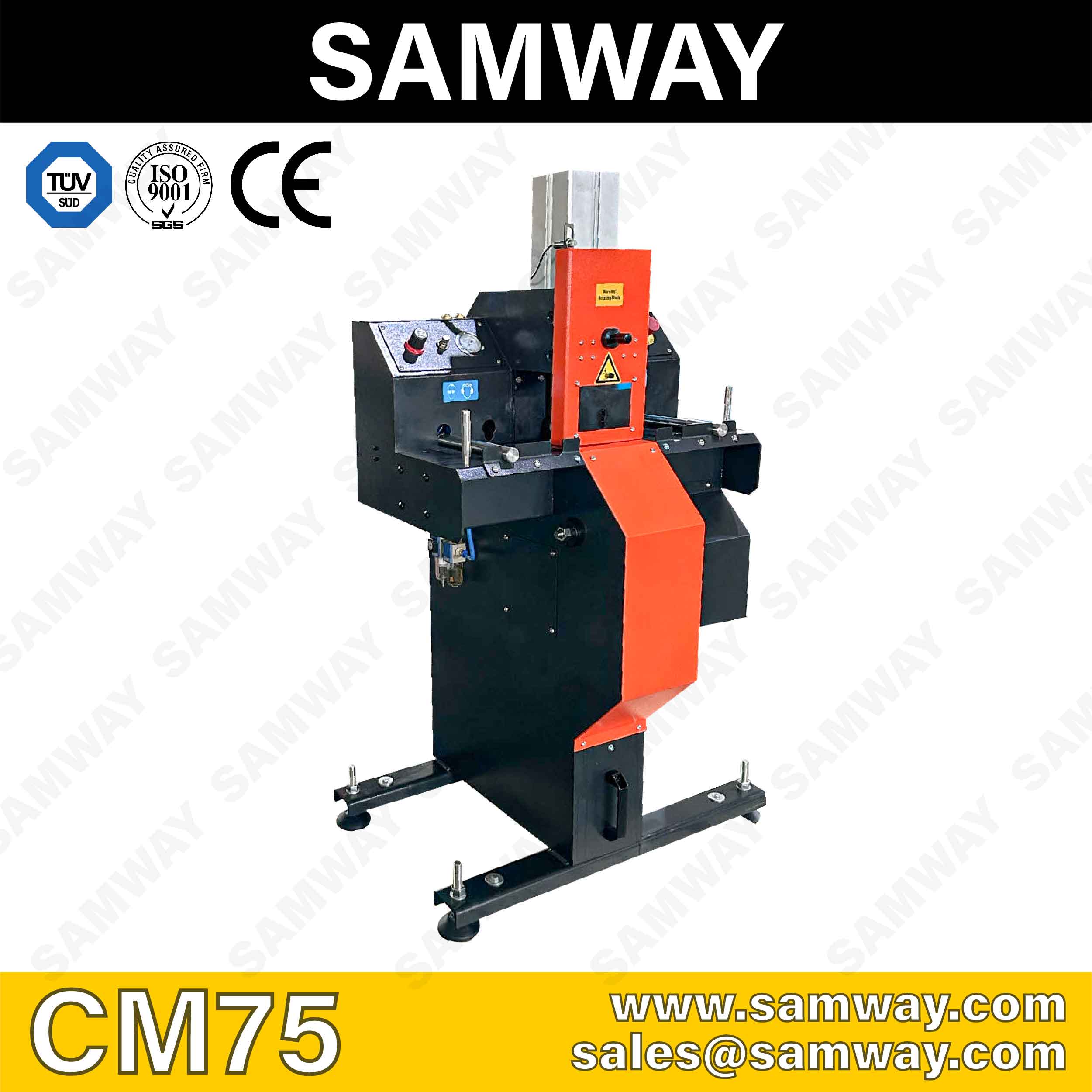

SAMWAY CM75 CUTTING MACHINE
Model: CM75
* Automatic Smooth Cutting * Cutting Speed adjustable * Foot pedal control * 2” 8 wire or 4” Industrial Hose
Options & Accessories
| Options | |
|---|---|
| Messuring device | Fume extractor |
| 230V/440V/480V 3 Phase |
Technical Specifications
Max.hose size(inch)2
Diameter (blade)external(mm)520x4
Diameter (blade)internal(mm)38
Max.hose OD(mm)71
Exhaust outlet OD(mm0103
Motor power (KW/HP)7.5/10.0(400V 3 Phase)
Velocity,50Hz(rpm)2840
Velocity,60Hz(rpm)2840
DIMENSIONS
| machine(mm) | 910x650x1400 |
|---|---|
| Machine(inch) | 35.8x25.6x55.1 |
| Packaged(mm) | 940x740x1560 |
| packaged(inch) | 37.0x29.1x61.4 |
WEIGHT
| Machine(kg) | 240 |
|---|---|
| Machine(lbs) | 529 |
| Packaged(kg) | 280 |
| Packaged(lbs) | 617 |
