Cutting Machine

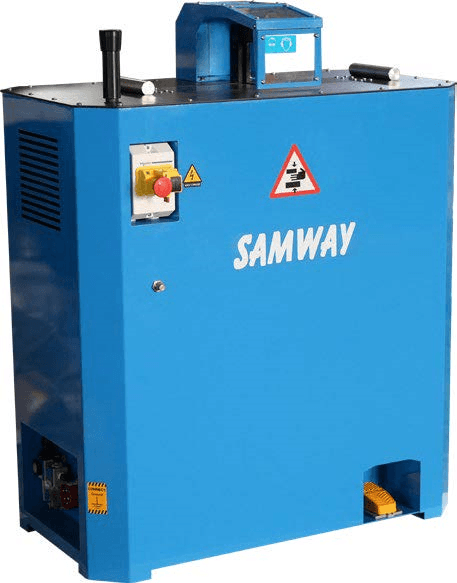

SAMWAY C450A CUTTING MACHINE
Model: C450A
* Full Protection * Foot pedal control * Direct Insert Hose From Front * Enhanced Structure Stable Cutting * CE Approved
Options & Accessories
| Options | |
|---|---|
| Toothed blade | 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
Technical Specifications
Max. hose size (inch)1)2"6SP
Diameter (blade) external (mm)300
Diameter (blade) internal (mm)50
Max. hose OD (mm)75
Exhaust outlet OD (mm)100
Motor Power (kW) 2)4.0(400V 3 Phase)
Motor Power (HP) 2)5.4
DIMENSIONS
| Machine(mm) | 950x600x1150 |
|---|---|
| machine(inch) | 37.4x23.6x45.3 |
| Packaged(mm) | 1050x700x1320 |
| Packaged(inch) | 41.3x27.6x52.0 |
WEIGHT
| Machine(kg) | 180 |
|---|---|
| Machine(lbs) | 397 |
| Packaged(kg) | 200 |
| Packaged(lbs) | 441 |
