Cutting Machine

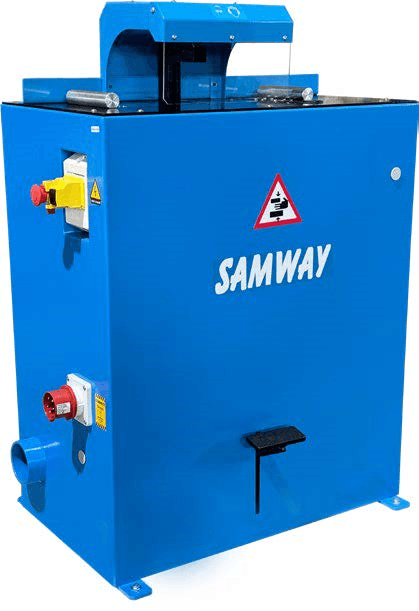

SAMWAY C400 CUTTING MACHINE
Model: C400
* Full protection * Foot pedal operation * Direct Insert Hose From Front * Enhanced Structure Stable Cutting * CE Approved
Options & Accessories
| Options | |
|---|---|
| Toothed blade | 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
Technical Specifications
Max. hose size (inch)1)2"4SP
Diameter (blade) external (mm)250
Diameter (blade) internal (mm)40
Max. hose OD (mm)75
Exhaust outlet OD (mm)100
Motor Power (kW) 2)3.0(400V 3 Phase)
Motor Power (HP) 2)4.0
DIMENSIONS
| Machine(mm) | 840x550x1150 |
|---|---|
| Machine(inch) | 33.1x21.7x45.3 |
| Packaged(mm) | 900x690x1320 |
| Packaged(inch) | 35.4x27.2x52.0 |
WEIGHT
| Machine(kg) | 150 |
|---|---|
| Machine(lbs) | 330 |
| Packaged(kg) | 170 |
| Packaged(lbs) | 375 |
