Cutting Machine

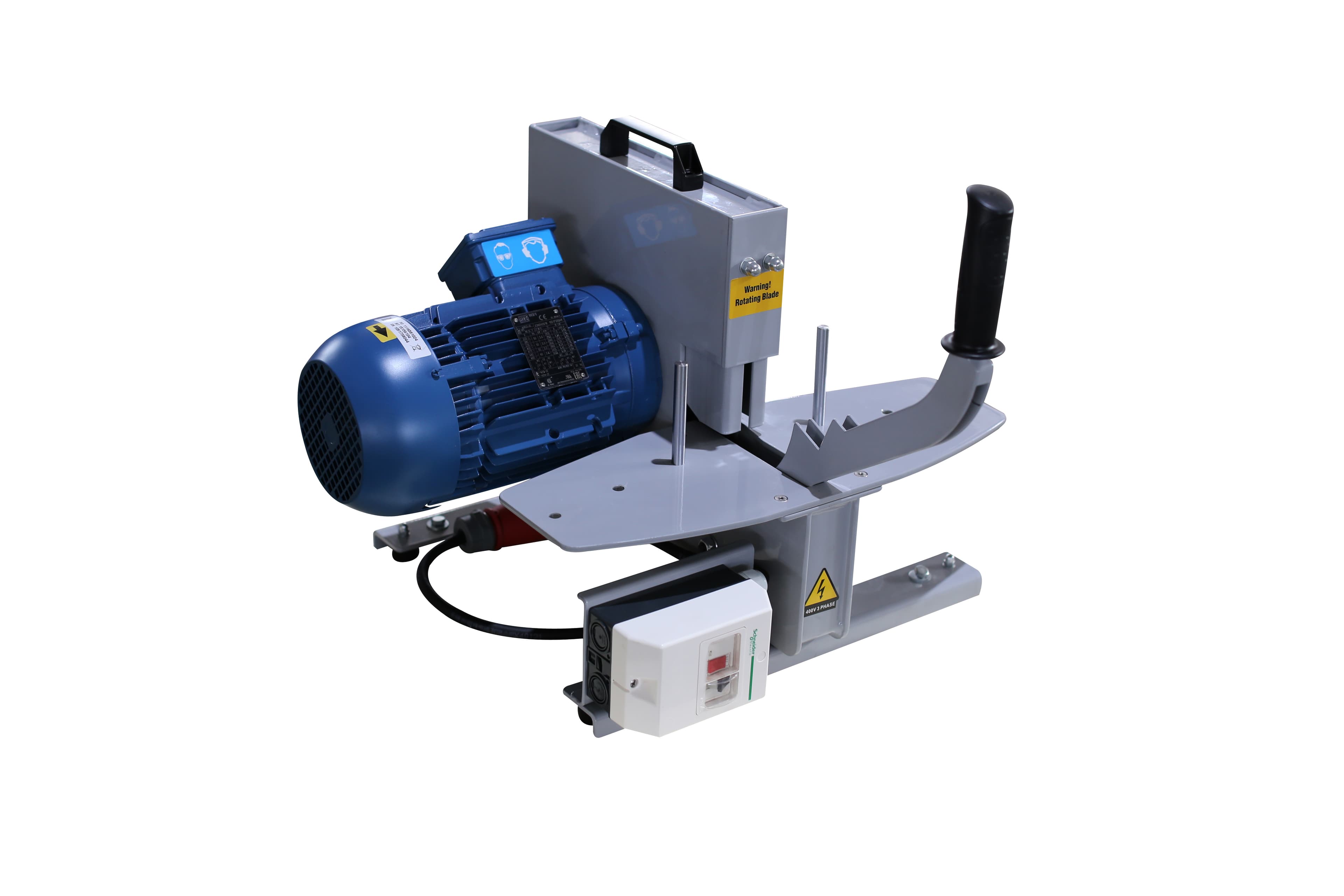

SAMWAY C300 CUTTING MACHINE
Model: C300
* Compact Design * Hand Cutting * Up to 2″ 4SP Hydraulic Hose * CE Approved
Options & Accessories
| Options | |
|---|---|
| 12/24V DC | Toothed blade |
| 110V/220V 1 Phase | 230V/440V/480V 3 Phase |
Technical Specifications
Max. hose size (inch)1)2
Diameter (blade) external (mm)300
Diameter (blade) internal (mm)50
Max. hose OD (mm)80
Exhaust outlet OD (mm)60
Motor Power (kW) 2)3.0(400V 3 Phase)
Motor Power (HP) 2)4.0
DIMENSIONS
| Machine(mm) | 450x400x430 |
|---|---|
| Machine(inch) | 17.7x15.7x16.9 |
| packaged(mm) | 650x700x780 |
| Packaged(inch) | 25.6x27.6x30.7 |
WEIGHT
| Machine(kg) | 55 |
|---|---|
| Machine(lbs) | 121 |
| machine(kg) | 75 |
| Packaged(lbs) | 165 |
