Cutting Machine

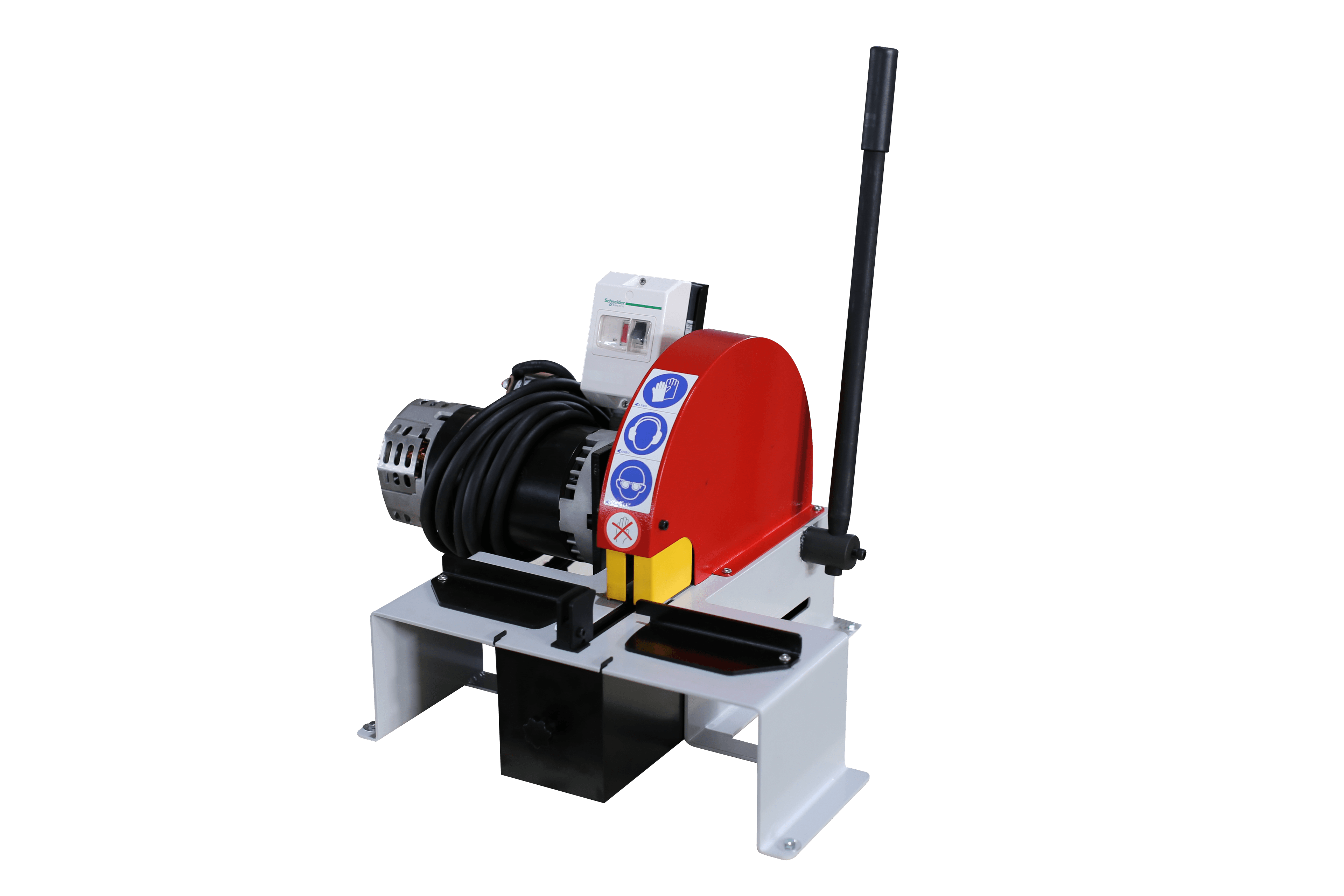

SAMWAY C250 12V/24V DC CUTTING MACHINE
Model: C250
* Designed for Truck or Van use * Up to 1 1/2″ 4SP Hydraulic Hose * Continuous cutting up to 30 minutes * weight and compact design * Pull to cut
Options & Accessories
| Options | |
|---|---|
| 12/24V DC | Toothed blade |
| 110V/220V 1 Phase | 230V/440V/480V 3 Phase |
Technical Specifications
Max. hose size (inch)1)1 1/2" 4SP
Diameter (blade) external (mm)250
Diameter (blade) internal (mm)40
Max. hose OD (mm)75
Exhaust outlet OD (mm)100
Motor Power (kW) 2) 1.5,24V(400v 3 Phase)
Motor Power (HP) 2) 2.0
DIMENSIONS
| Machine(mm) | 400x350x400 |
|---|---|
| Machine(inch) | 15.7x13.8x15.7 |
| Packaged(mm) | 700x620x590 |
| Packaged(inch) | 27.6x24.4x23.2 |
WEIGHT
| Machine(kg/lbs) | 50/10 |
|---|---|
| Packaged(kg/lbs) | 70/154 |
