Skiving Machine

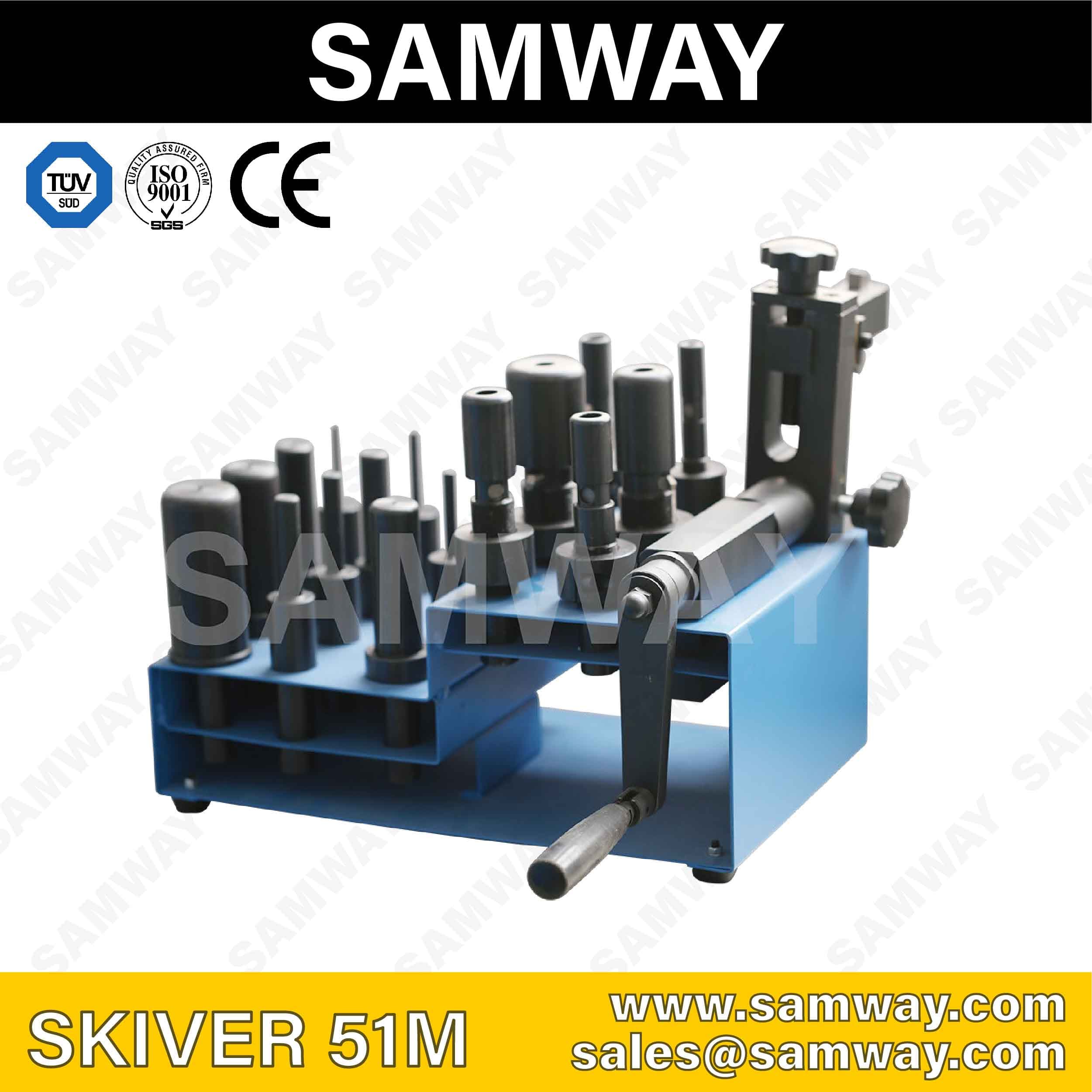

SKIVER 51M MANUAL SKIVING MACHINE
Model: 51M
* Foot Pedal Control * 2 way rotation * Optional internal skiving tools * CE Certified * Compact Design
Technical Specifications
GearboxBy Hand
Switch2 way rotation
noise level60 dBA
Emergency stopN/A
cover safety protectionN/A
External Skiving tools included06,08,10,12,16,19,25,32,38,50
Internal skiving tools optionalUIS2 DN 16 19 25 32 38 51
DIMENSIONS
| Machine(mm) | 450x250x350 |
|---|---|
| Machine(inch) | 17.7x9.8x13.8 |
| packaged(mm) | 550x350x450 |
| Packaged(inch) | 21.7x13.8x17.7 |
WEIGHT
| Machine(kg/lbs) | 28/62 |
|---|---|
| Packaged(kg/lbs) | 43/95 |
DESCRIPTION
| INTERNAL TOOLS | PNo | Size(inches) |
|---|---|---|
| 715078 | 3/8 | |
| 708937 | 1/2 | |
| 707182 | 5/8 | |
| 707167 | 3/4 | |
| 707166 | 1 | |
| 707179 | 1 1/4 | |
| 707181 | 1 1/2 | |
| 707184 | 2 | |
| EXTERNAL MANDRELS | 711313 | 3/16 |
| 711312 | 1/4 | |
| 711311 | 5/16 | |
| 711310 | 3/8 | |
| 711321 | 1/2 | |
| 711320 | 5/8 | |
| 711319 | 3/4 | |
| 711318 | 1 | |
| 711314 | 1 1/4 | |
| 711315 | 1 1/2 | |
| 711317 | 2 | |
| INTERNAL TOOLS PNo Size(inches) 715078 3/8 708937 1/2 707182 5/8 707167 3/4 707166 1 707179 1 1/4 707181 1 1/2 707184 2 EXTERNAL MANDRELS 711313 3/16 711312 1/4 711311 5/16 711310 3/8 711321 1/2 711320 5/8 711319 3/4 711318 1 711314 1 1/4 711315 1 1/2 711317 2 TOOL RACK WITHOUT TOOLS | 707253 | |
| TOOL RACK+MANDRELS | 711331 |
