Skiving Machine

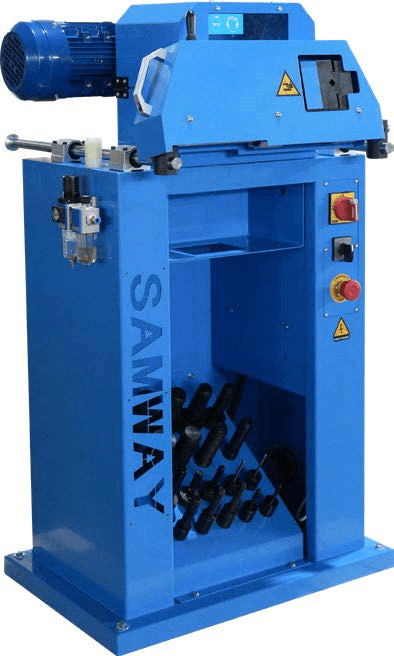

SAMWAY SKIVER 51AS SKIVING MACHINE
Model: 51AS
* Foot Pedal Control * Optional Pneumatic Assist Device * CE Certified * With Tool Holder
Technical Specifications
hose capacity.exterbnal(inch)3/16-2
Hose Capacity,internal(inch)3/8-2
Speed of tool rotation(r./min)100
Skiving length(mm)100
Motor power(KW?HP)0.75/1.0(400V 3 Phase)
DIMENSIONS
| Machine(mm) | 450x400x1400 |
|---|---|
| Machine(inch) | 17.7x15.7x55.1 |
| Packaged(mm) | 550x500x1500 |
| packaged(inch) | 21.7x19.7x59.1 |
WEIGHT
| Machine(kg/lbs) | 100/220 |
|---|---|
| packaged(kg/lbs) | 130/287 |
DESCRIPTION
| INTERNAL TOOLS | PNo | Size(inches) |
|---|---|---|
| 715078 | 3/8 | |
| 708937 | 1/2 | |
| 707182 | 5/8 | |
| 707167 | 3/4 | |
| 707166 | 1 | |
| 707179 | 1 1/4 | |
| 707181 | 1 1/2 | |
| 707184 | 2 | |
| EXTERNAL MANDRELS | 711313 | 3/16 |
| 711312 | 1/4 | |
| 711311 | 5/16 | |
| 711310 | 3/8 | |
| 711321 | 1/2 | |
| 711320 | 5/8 | |
| 711319 | 3/4 | |
| 711318 | 1 | |
| 711314 | 1 1/4 | |
| 711315 | 1 1/2 | |
| 711317 | 2 | |
| TOOL RACK WITHOUT TOOLS | 707253 | |
| TOOL RACK+MANDRELS | 711331 |
