Side Feed Crimping Machine

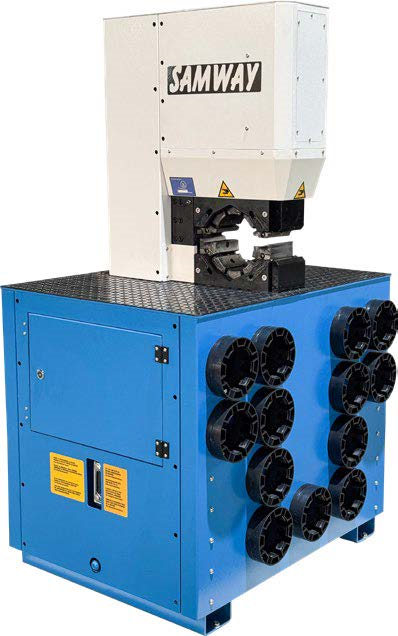

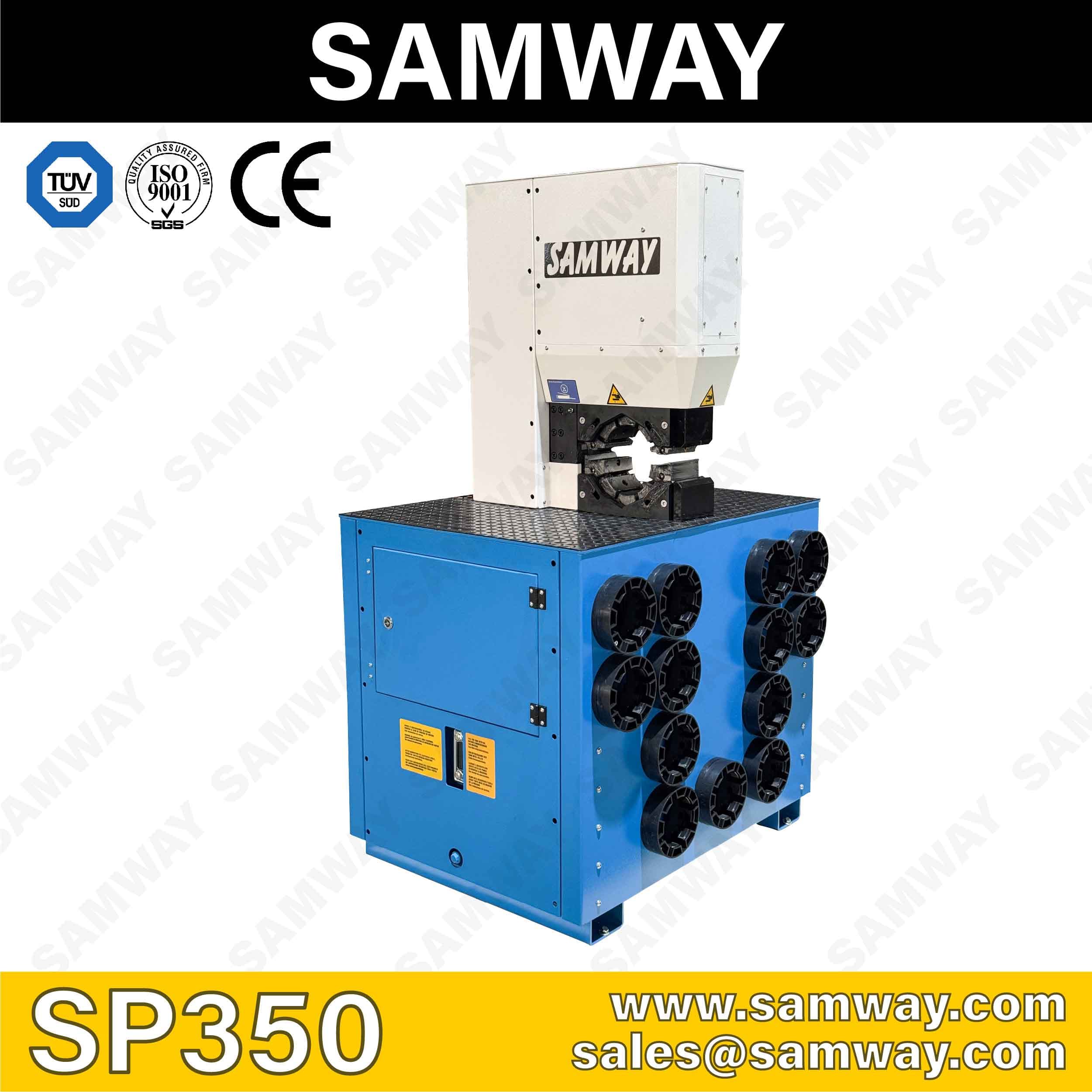

SAMWAY SP350 Side Feeding Crimping Machine
Model: SP350
* Side Feed C Shape for bizarre hose assembly * Gear box oil hose * Air condition hose * Automobile Industry
Technical Specifications
crimping range(mm)1)10-46
Crimping range(inch)100.39-1.81
Max.crimping force(KN)350
Max.Crimping force(tonnage)35
Cycle time 10 mm(S)2)1.9(s-model:0.9)
Hose Size ID(inch)1 1/4
Die set series 3)SP350
Max.opening9mm)4)+25/+50
Master die D/L(mm)70/40
Master die D/L (inch)2.75/51.58
motor power(KW/HP)3.0/4.0
Oil tank volume50 l
DIMENSIONS
| Machine(mm) | 814/782x1670 |
|---|---|
| Machine(inch) | 32.0x30.8x65.7 |
| Packaged(mm) | 914x882x1770 |
| Packaged(inch) | 36.0x34.7x69.7 |
WEIGHT
| Machine(kg/lbs) | 383/844 |
|---|---|
| Packaged(kg/lbs) | 433/955 |
DIE SET SP 350-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 701817/10 | 10 | 40 | 10.0-2.0 |
| 701817/12 | 12 | 40 | 12.0-14.0 |
| 701817/14 | 14 | 40 | 14.0-16.0 |
| 701817/16 | 16 | 40 | 16.0-19.0 |
| 701817/19 | 19 | 40 | 19.0-23.0 |
| 701817/23 | 23 | 40 | 23.0-27.0 |
| 701817/27 | 27 | 40 | 27.0-31.0 |
| 701817/31 | 31 | 40 | 31.0-36.0 |
| 701817/36 | 36 | 40 | 31.0-36.0 |
| 701817/41 | 41 | 40 | 36.0-47.0 |
| 701817/47 | 47 | 40 | 47.0-54.0 |
