Worshop crimping Machine

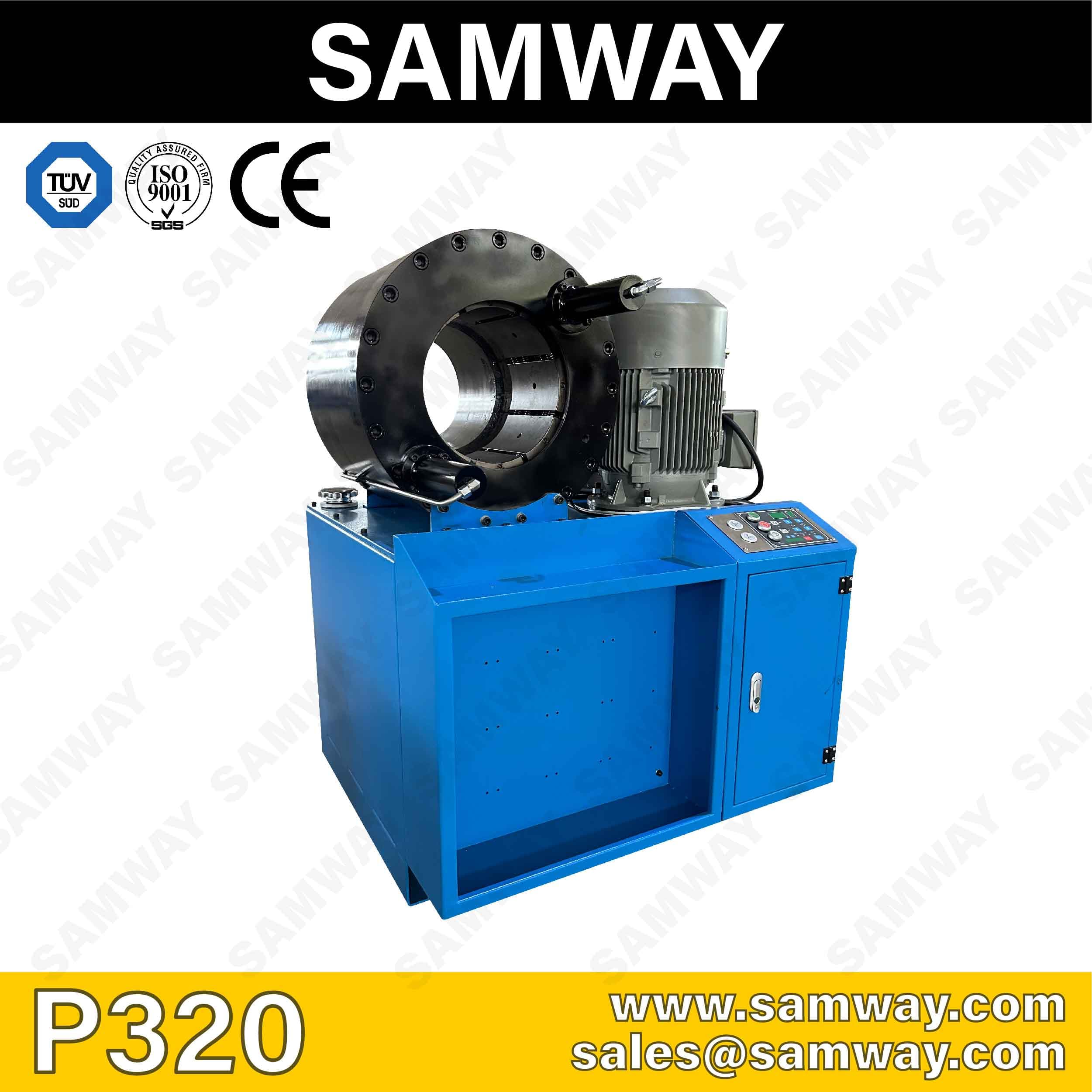

SAMWAY P320 CRIMPING MACHINE
Model: P320
* Full Automatic Control with Foot pedal * 10” Industrial Hose * Energy Saving and Safety Operation
Options & Accessories
| Options | |
|---|---|
| die rack | quick change tool |
| backstop device | control by pressure |
| 110V/220v 1 Phase | 230V/440V/480V 3 Phase |
Technical Specifications
Industrial Hose10"
max Hydraulic hose4"6SP
Crimping Range(mm)4-290
Die typeP32
Crimping speed second12
Max opening(mm)1)+60
Motor power(KW/HP)1)11.0/14.7(400V 3 Phase)
Crimping force(KN)2800
Crimping per hour450
Foot pedalincluded
Noise level(dBA)65
Protection classIP56
DIMENSIONS
| Machine(mm) | 950x1000x1450 |
|---|---|
| Machine(inch) | 37.4x39.4x57.1 |
| Packaged(mm) | 1150x1150x1600 |
| Packaged(inch) | 45.3x45.3x63.0 |
WEIGHT
| Machine(kg/lbs) | 1800/3968 |
|---|---|
| packaged(kg/lbs) | 1900/4189 |
