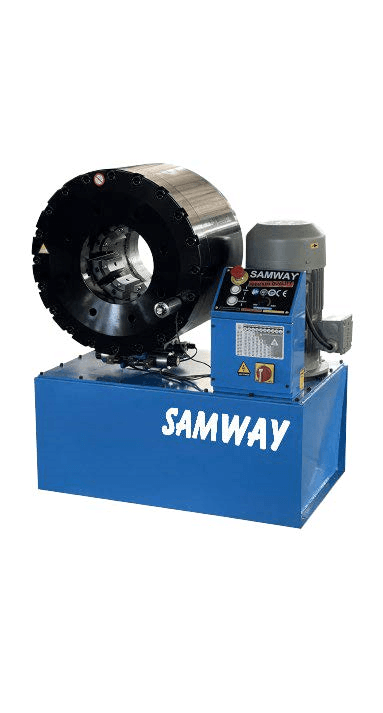

SAMWAY PE88 CRIMPING MACHINE
Model: PE88
* Vertical Crimping *+80mm Opening *Fast Crimping *Up to 6″ Hose
Technical Specifications
Crimping Range(mm)1)6"
Opening without die (mm)275
Opening with die (mm)+80
Crimping force(KN)8000
Master die length(mm)200
Crimping methodCrimping up and down (no moving forward or backward make the positioning much easier)
Crimping speedfast
motor(KW)3 phase by ABB (220/400/440/480/660V)7.5Kw
DIMENSIONS
| Machine(mm) | 920x580x1200 |
|---|---|
| Machine(inch) | 36.2x22.8x47.2 |
| Packaged(mm) | 1020x680x1350 |
| Packaged(inch) | 40.2x26.8x53.1 |
WEIGHT
| Machine(kg/lbs) | 1250/2756 |
|---|---|
| Packaged(kg/lbs) | 1330/2932 |
DIE SET 88-SERIES
| DiesSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.1-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
