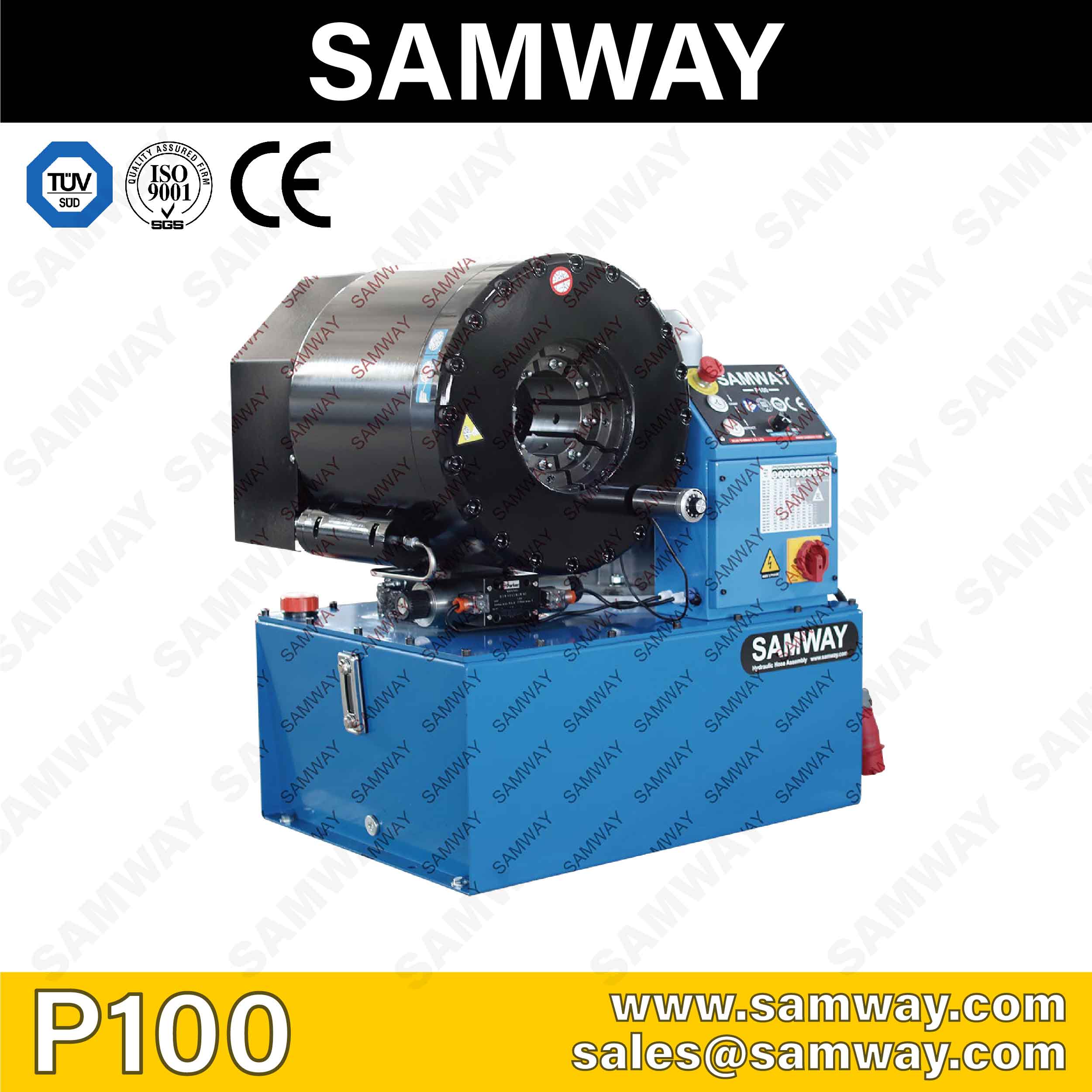

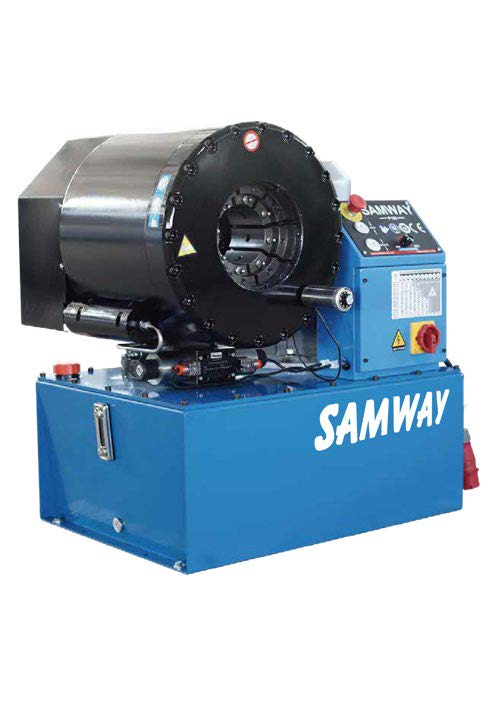

SAMWAY P100 CRIMPING MACHINE
Model: P100
* Up to 4″ 8SP Hose * Super High Pressure Hose Crimping ( 5000 Bar ) * Production Purpose * Semi-Automatic Crimping Machine
Options & Accessories
| Options | |
|---|---|
| 110V/220V 1 Phase | 230V/440V/480V 3 Phase |
Technical Specifications
Max crimping dia(mm/inch)1124/4.88
Max crimping dia with master dies(mm/inch)150/5.9
Max crimping force(KN)2800
Max crimping force (tonnage)280
Cycle time 10 mm(S)2)3)6.1
Hydraulic hose size(inch)4"8
Industrial hose size(inch)4.88*
Die set series32/140
Max opening (mm)4)+50
Max opening without dies(mm)180
Master die D/L (mm)140/120
Master die D/L (inch)5.52-4.73
Motor power (KW/HP)34.0/5.5 1.5/2.0 (400v 3 Phase)
oil Tank Volume80L
DIMENSIONS
| Machine(mm) | 800x650x900 |
|---|---|
| Machine(inch) | 31.5x25.6x35.4 |
| Packaged(mm) | 1000x1000x1000 |
| Packaged(inch) | 39.4x39.4x39.4 |
WEIGHT
| Machine(kg/lbs) | 450/992 |
|---|---|
| Packaged(kg/lbs) | 500/1102 |
DIE SET 140-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18860/84 | 84 | 110 | 84.0-82.0 |
| 18860/92 | 92 | 110 | 92.0-100.0 |
| 18860/100 | 100 | 110 | 100.0-108.0 |
| 18860/108 | 108 | 110 | 108.0-116.0 |
| 18860/116 | 116 | 110 | 116.0-124.0 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.1-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
