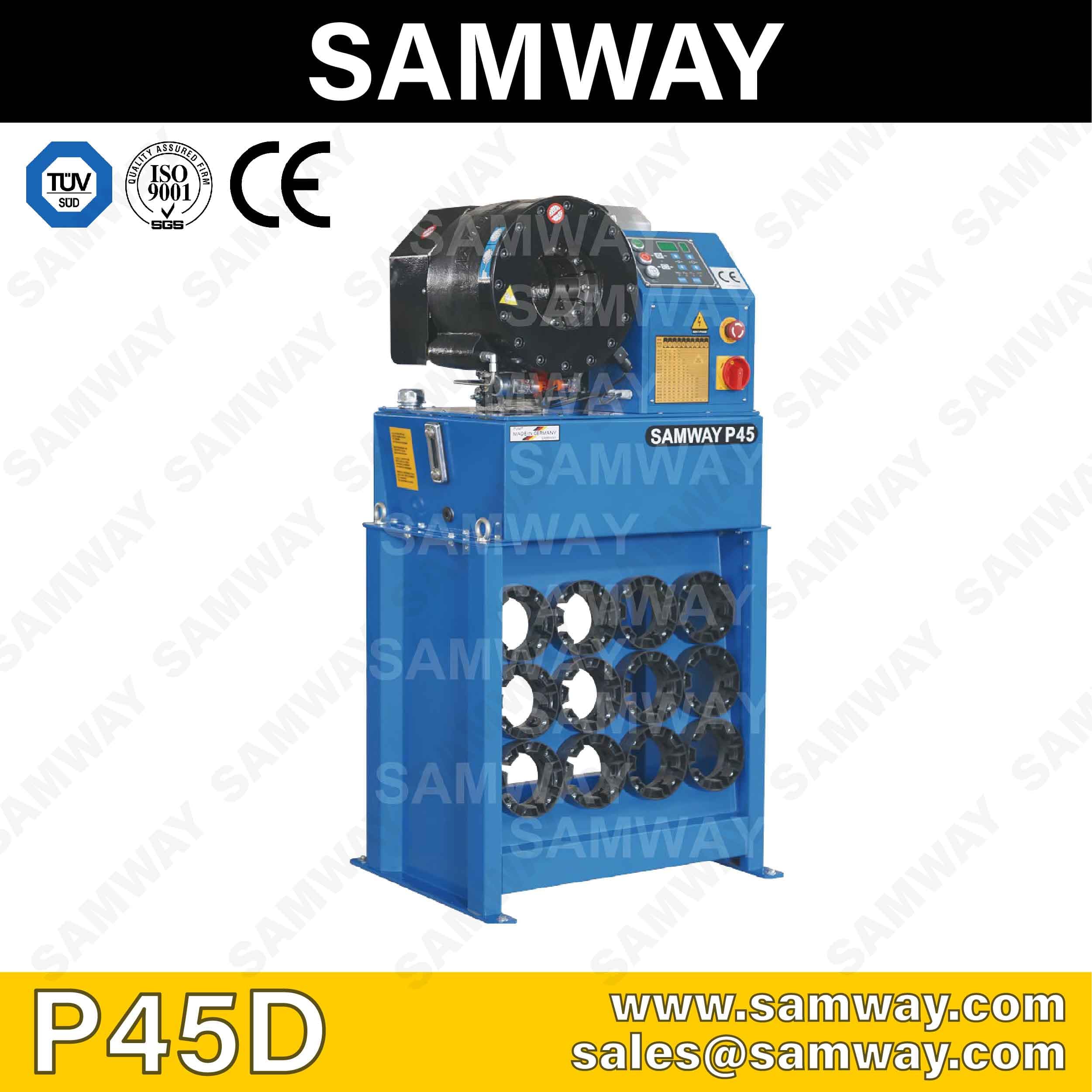

SAMWAY P45D CRIMPING MACHINE
Model: P45D
* Digital Precision Control * Quick Change Tool and Die rack * 2″8SP Hydraulic Hose * Pump Made In Germany by Voith *TUV CE Approved
Options & Accessories
| Options | |
|---|---|
| 110V/220V 1 Phase | 230V/440V/480V 3 Phase |
Technical Specifications
Max crimping dia(mm/inch)1 2"8SP
Max crimping dia with master dies(mm/inch)109/4.3
Max crimping force(KN)4000
Max crimping force (tonnage)400
Cycle time 10 mm(S)2)3)4
Hydraulic hose size(inch) 2"6SP
Industrial hose size(inch) 3.42*
Die set series 32
Max opening (mm)4) +32
Max opening without dies(mm) 132
Master die D/L (mm) 99/80
Master die D/L (inch) 3.90/3.15
Motor power (KW/HP)3) 4.0/5.5 1.5/2.0 (400V Phase)
oil Tank Volume 40L
DIMENSIONS
| Machine(mm) | 680x600x1400 |
|---|---|
| Machine(inch) | 26.8x23.6x55.1 |
| Packaged(mm) | 820x1250x980 |
| Packaged(inch) | 32.3x49.2x38.6 |
WEIGHT
| Machine(kg/lbs) | 400/882 |
|---|---|
| Packaged(kg/lbs) | 402/886 |
DIE SET 32 - SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 1 0 | 55 | 10.1-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
