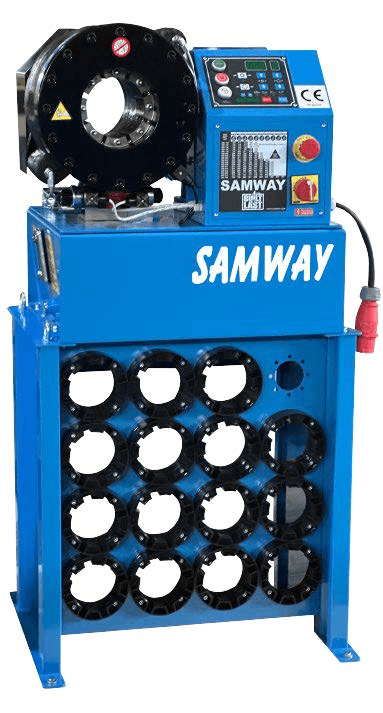

SAMWAY P38D CRIMPING MACHINE
Model: P38D
* Digital Precision Control * Quick Change Tool and Die rack * 2″ 6SP Hydraulic Hose * Pump Made In Germany by Voith * TUV CE Approved
Options & Accessories
| Options | |
|---|---|
| back stop device | camera and monitor |
| custimized die sets | custimized voltage |
| custimized logo | 110V/220v 1 phase |
| 230V/440V/480V 3 phase |
DIMENSIONS
| Machine (mm) | 680x600x1430 |
|---|---|
| Machine (inch) | 26.8x23.6x56.3 |
| Packaged (mm) | 820x1250x980 |
| Packaged (inch) | 32.3x49.2x38.6 |
WEIGHT
| Machine (kg/lbs) | 350/772 |
|---|---|
| Packaged (kg/lbs) | 350/772 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.1-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
