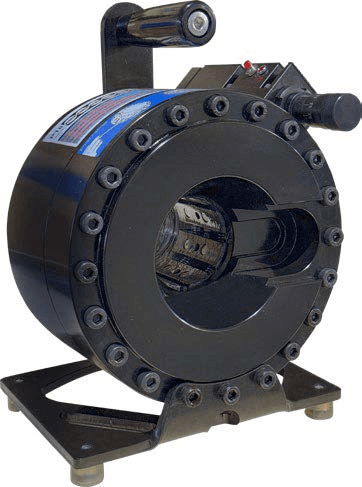

SAMWAY P18HPZ CRIMPING MACHINE
Model: P18HPZ
* Elbow 90 degree hose up to 1″4SP * Portable 1″4SP Crimper * No electricity required * Optional Enerpac Pneum
Options & Accessories
| Options | |
|---|---|
| Electrical Pump | Penumatic Pump |
| Hand Pump | Battery Pump |
Technical Specifications
Max crimping dia (mm/inch)11"4SP
Max crimping dia with master dies(mm/inch)45/1.8
Max crimping force(KN)1200
Max crimping force(tannage)120
Hydraulic hose size(inch)1"4SP
Industrial hose size(inch)1"4sP
Die set series18
Max opening(mm)2)+20
Max opening without dies(mm)65
Master die D/L(mm)45/64
Master die D/L(inch)1.54/2.52
Motor powerOptional
DIMENSION
| Machine(mm) | 190x180x310 |
|---|---|
| Machine(inch) | 7.5x7.1x12.2 |
| Packaged(mm) | 480x480x370 |
| Packaged(inch) | 18.9x18.9x14.6 |
WEIGHT
| Machine(kg/lbs) | 32/71 |
|---|---|
| Packaged(kg/lbs) | 39/86 |
DIE SET 18-SERIES
| DieSetNo | D(mm) | L(mm) | crimp.range(mm) |
|---|---|---|---|
| 18212/10 | 10 | 55 | 10.0-12.0 |
| 18212/12 | 12 | 55 | 12.0-14.0 |
| 18212/14 | 14 | 55 | 14.0-16.0 |
| 18212/16 | 16 | 55 | 16.0-19.0 |
| 18212/19 | 19 | 55 | 19.0-23.0 |
| 18212/23 | 23 | 55 | 23.0-27.0 |
| 18212/27 | 27 | 65 | 27.0-31.0 |
| 18212/31 | 31 | 65 | 31.0-37.0 |
| 18212/37 | 37 | 65 | 37.0-45.0 |
| 18212/45 | 45 | 65 | 45.0-53.0 |
