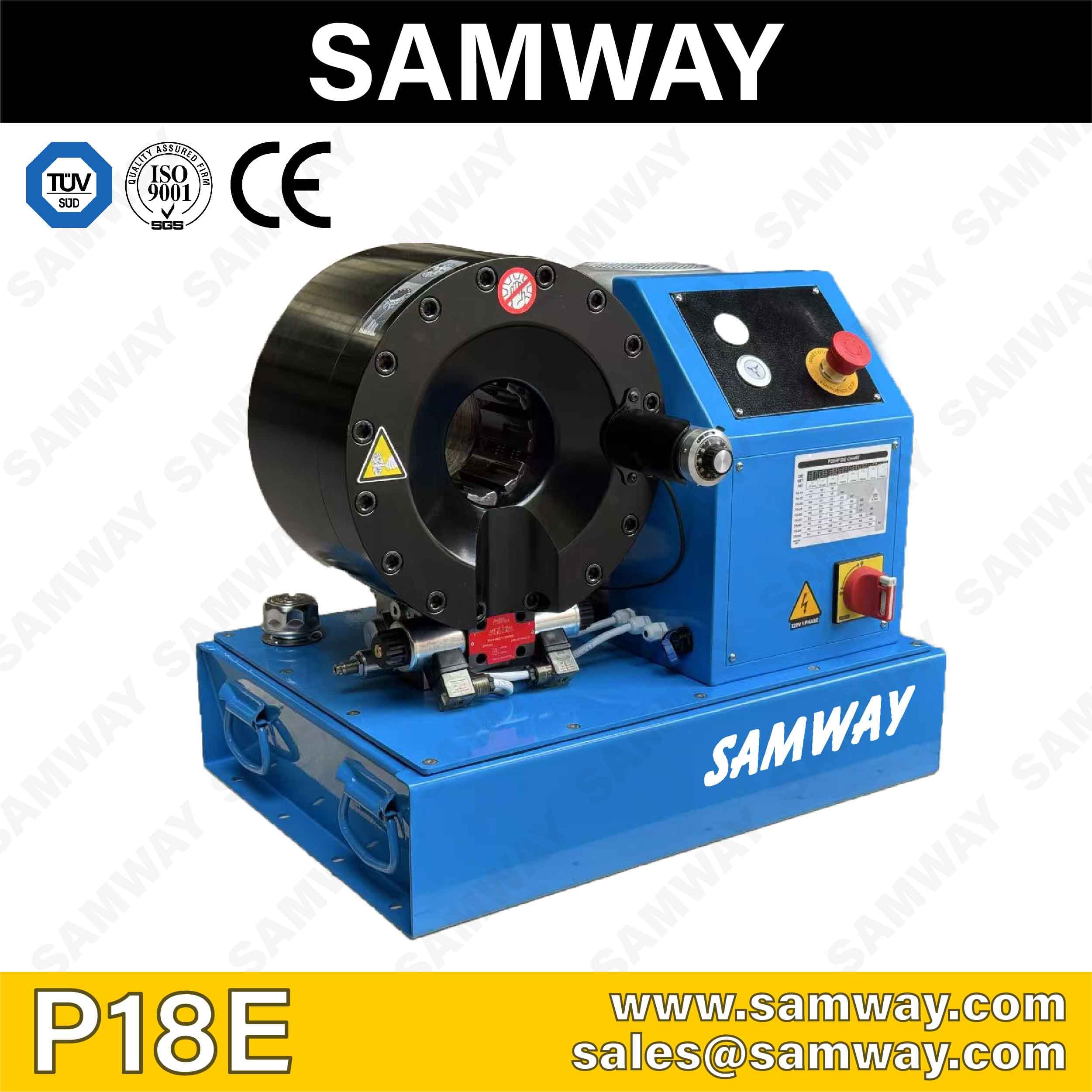

SAMWAY P18E CRIMPING MACHINE
Model: P18E
* Full Automatic Control with Foot pedal * Quick Change Tool and Die rack * Energy Saving and Safety Operation * Ideal for elbow 90 degree fittings * Compact Design
Options & Accessories
| Options | |
|---|---|
| digital control | samens touch control |
| back stop device | pressure control |
| camera and monitor | custimized die sets |
| custimized voltage | custimized logo |
| 110v/220v 1 phase | 230v/440v/430v 3 phase |
| 12v/24v DC |
Technical Specifications
Max crimping dia (mm/inch) 158/2.28
max crimping dia with master dies (mm/inch70/2.76
max crimping force (kN)1300
Max crimping force (tonnage)130
Cycle time 10 mm (s) 2) 3)4
Hydraulic hose size (inch)1"4SP
Industrial hose size (inch)2"
Die set seriesS6
max opening (mm) 4)+28
max opening without dies (mm)98
master die D/L (mm)70/80
master die D/L (inch2.76/3.15
motor Power (kW/HP) 32.2/3
oil tank volume27L
DIMENSIONS
| Machinea(mm) | 600x430x520 |
|---|---|
| machine(inch) | 23.6x16.9x20.5 |
| Packaged(mm) | 700x530x620 |
| Packaged9inch) | 27.6x20.9x24.4 |
WEIGHT
| Machine(kg/lbs) | 140/309 |
|---|---|
| Packaged(kg/lbs | 155/342 |
DIE SET S6 SERIES
| dieSetNo | D(mm) | L(mm) | crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.0-12.0 |
| *18506/12 | 12 | 55 | 12.0-14.0 |
| *18506/14 | 14 | 55 | 14.0-17.0 |
| *18506/17 | 17 | 55 | 17.0-20.0 |
| *18506/20 | 20 | 55 | 20.0-24.0 |
| *18506/24 | 24 | 55 | 24.0-28.0 |
| *18506/28 | 28 | 75 | 28.0-32.0 |
| *18506/32 | 32 | 75 | 32.0-36.0 |
| 8506/36 | 36 | 75 | 36.0-40.0 |
| *18506/40 | 40 | 90 | 40.0-44.0 |
| 18506/44 | 44 | 90 | 44.0-50.0 |
| 18506/50 | 50 | 90 | 50.0-52.0 |
| 18506/52 | 52 | 90 | 52.0-58.0 |
| 18506/58 | 58 | 90 | 58.0-64.0 |
