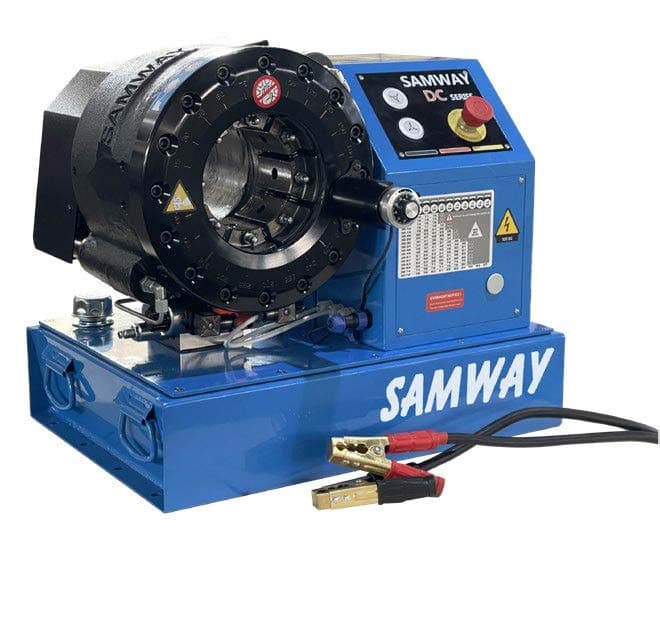

SAMWAY P32DC CRIMPING MACHINE
Model: P32DC
* 2″4SP Hydraulic Hose * Compact & Robust Design * Optional Quick Change Tool & Die Rack * TUV CE Approved
Options & Accessories
| Options | |
|---|---|
| 12v/24v DC |
Technical Specifications
Max crimping dia (mm/inch) 187/3.42
max crimping dia with master dies (mm/inch109/4.3
max crimping force (kN)2800
Max crimping force (tonnage)280
Cycle time 10 mm (s) 2) 3) 4
Hydraulic hose size (inch)2*
Industrial hose size (inch)3.42*
Die set series32
max opening (mm) 4)+33
max opening without dies (mm)132
master die D/L (mm)99/80
master die D/L (inch 3.90/3.15
motor Power (kW/HP) 33.0/4.0 1.5/2.0(12/24VDC)
oil tank volume25L
DIMENSIONS
| Machine(mm) | 820x700x650 |
|---|---|
| Machine(inch) | 32.3x27.6x25.6 |
| Packaged(mm) | 920x800x800 |
| Packaged(inch) | 36.2x31.5x31.5 |
WEIGHT
| Machine(kg/lbs) | 220/485 |
|---|---|
| Packaged(kg/lbs) | 240/529 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | crimp.range(mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.0-12.0 |
| *18506/12 | 12 | 55 | 12.0-14.0 |
| *18506/14 | 14 | 55 | 14.0-16.0 |
| *18506/16 | 16 | 55 | 16.0-19.0 |
| *18506/19 | 19 | 55 | 19.0-22.0 |
| *18506/22 | 22 | 70 | 22.0-26.0 |
| *18506/26 | 26 | 70 | 26.0-30.0 |
| *18506/30 | 30 | 70 | 30.0-34.0 |
| 8506/34 | 34 | 75 | 34.0-39.0 |
| *18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| *18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-75.0 |
| *18506/74 | 74 | 110 | 74.0-80.0 |
| *18506/78 | 78 | 110 | 78.0-87.0 |
