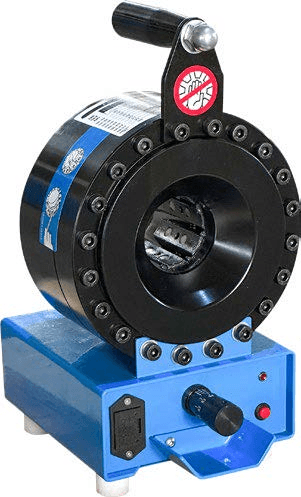

SAMWAY P16APZ CRIMPING MACHINE
Model: P16APZ
* Portable 1”3 wire Crimper * No electricity required * Air Pump * Complete Die Set
Options & Accessories
| Options | |
|---|---|
| 220V 1 Phase /400V 3 Phase electrical pump | Pneumatic Pump |
| Custmized Die sets | Custimized logo |
Technical Specifications
Max crimping dia(mm/inch)1)45/1.77
Max crimping dia with master dies(mm/inch)49/1.9
Max crimping force(KN)995
Max crimping force (tonnage)95
Hydraulic hose size(inch) 1*
Industrial hose size(inch) 1.77*
Die set series16
Max opening (mm)2)+20
Max opening without die (mm)59
Master die D/L(mm)39/64
Master die D/L(inch)1.54/2.52
Motor powerAir Pressure
OPTIONS
| Electrical pump |
|---|
| Penumatic pump |
| Hand pump |
| Battery pump |
DIMENSIONS
| Machine(mm) | 17.0x210x400 |
|---|---|
| Machine(inch) | 6.7x8.3x15.7 |
| Packaged(mm) | 270x310x500 |
| Packaged(inch) | 10.6x12.2x19.7 |
WEIGHT
| Machine(kglbs) | 18/40 |
|---|---|
| Packaged(kg/lbs) | 28/62 |
DIE SET 16-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18212/10 | 10 | 55 | 10.0-12.0 |
| 18212/12 | 12 | 55 | 12.0-14.0 |
| 18212/14 | 14 | 55 | 14.0-16.0 |
| 18212/16 | 16 | 55 | 16.0-19.0 |
| 18212/19 | 19 | 55 | 19.0-23.0 |
| 18212/23 | 23 | 55 | 23.0-27.0 |
| 18212/27 | 27 | 65 | 27.0-31.0 |
| 18212/31 | 31 | 65 | 31.0-38.0 |
