Production crimping Machine

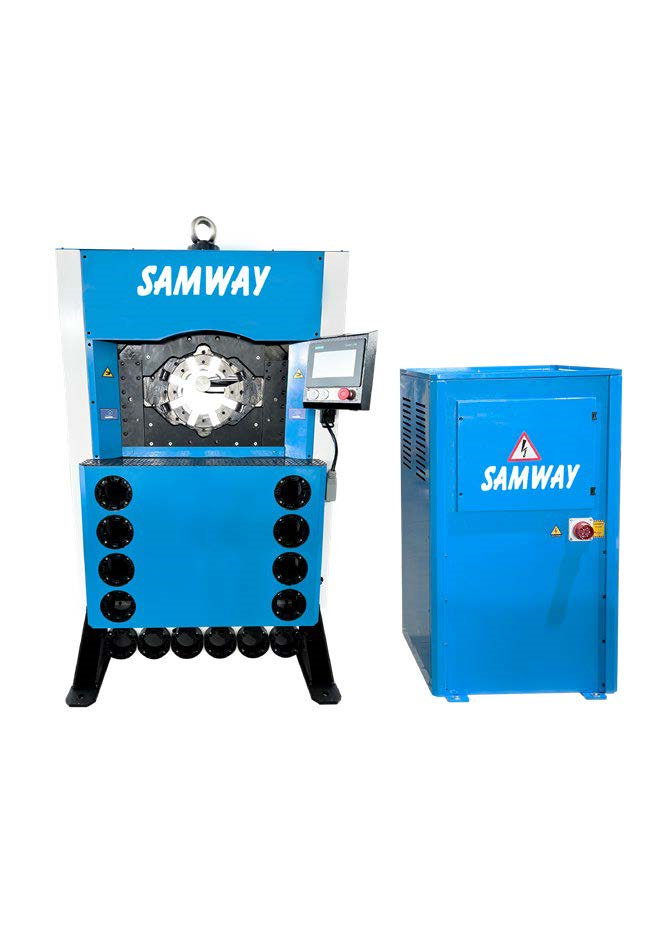

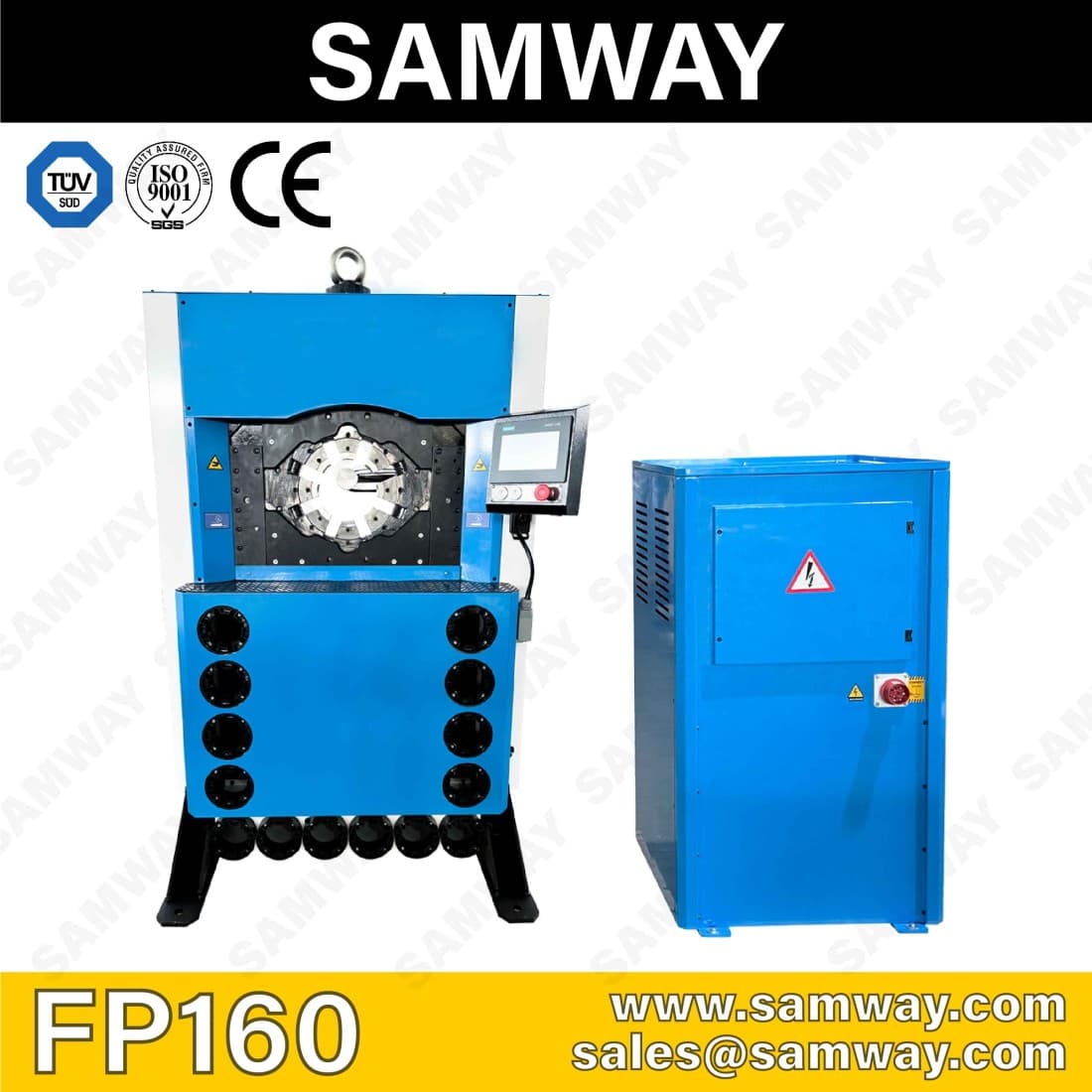

SAMWAY FP160 CRIMPING MACHINE
Model: FP160
* Siemens Touch Control * Designed for Mass Production * Large Opening up +125mm * Any size of 8SP Hydraulic Hose
Technical Specifications
Max crimping dia (mm/inch) 1) 202/7.95
Max crimping dia with master dies (mm/inch) 230/9
Max. crimping force (kN) 6000
Max. crimping force (tonnage) 600
Cycle time 10 mm (s) 2) 2.3
Hydraulic hose size (inch) 6 *
Industrial hose size (inch) 7.95 *
Die set series 32/160
Max. opening (mm) 3) +125
Max. opening without dies (mm) 345
Master die D/L (mm) 220/116
Master die D/L (inch) 8.66/4.57
Motor Power (kW/HP) 7.5/10(400V 3 Phase)
Oil tank volume 250 L
OPTIONS
| Siemens Touch Control |
|---|
| Back stop device |
| Pressure Control |
| Camera and monitor |
| Custmised die sets |
| Custmised voltage |
| Custmised Logo |
| 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
DIMENSIONS (LxWxH)
| Machine (mm) | 1063x1300x1780 |
|---|---|
| Machine (inch) | 41.9x51.2x70.1 |
| Packaged (mm) | 1265x1350x2070 |
| Packaged (inch) | 49.8x53.1x81.5 |
| Hydraulic Unit (mm) | 900x700x1300 |
| Hydraulic Unit (inch) | 35.4x27.6x51.2 |
| Packaged (mm) | 1045x800x1405 |
| Packaged (inch) | 41.1x31.5x55.3 |
WEIGHT
| Machine (kg/lbs) | 2850/7716 |
|---|---|
| Packaged (kg/lbs) | 2950/6503 |
| Hydraulic Unit (kg/lbs) | 500/1102 |
| Packaged (kg/lbs) | 550/1213 |
DIE SET 160-SERIES
| DIESET No | D (mm) | L (mm) | Crimp.Range (mm) |
|---|---|---|---|
| 18852/84 | 84 | 116 | 84.0-92.0 |
| 18852/92 | 92 | 116 | 92.0-100.0 |
| 18852/100 | 100 | 116 | 100.0-108.0 |
| 18852/108 | 108 | 116 | 108.0-116.0 |
| 18852/116 | 116 | 116 | 116.0-126.0 |
| 18852/126 | 126 | 116 | 126.0-136.0 |
| 18852/136 | 136 | 116 | 136.0-146.0 |
| 18852/146 | 146 | 116 | 146.0-156.0 |
| 18852/156 | 156 | 116 | 156.0-166.0 |
| 18852/166 | 166 | 116 | 166.0-178.0 |
| 18852/178 | 178 | 116 | 178.0-190.0 |
| 18852/190 | 190 | 116 | 190.0-202.0 |
DIE SET 32-SERIES
| DIESET No | D (mm) | L (mm) | Crimp.Range (mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.0-12.0 |
| *18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-75.0 |
| *18506/74 | 74 | 110 | 74.0-80.0 |
| *18506/78 | 78 | 110 | 78.0-87 .0 |
