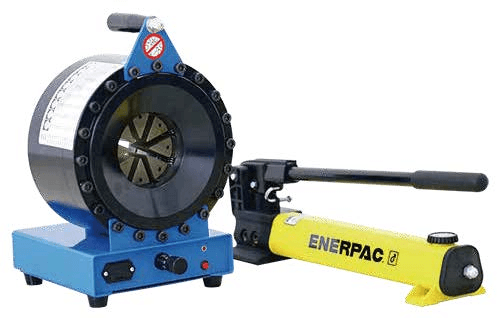

SAMWAY P20HPZ CRIMPING MACHINE
Model: P20HPZ
* Extreme Portable 1 1/4” Crimper * No electricity required * Optional Enerpac Hand Pump or Air Pump * Complete Die Set
Technical Specifications
Max Hydraulic hose1 1/4"4 wire
Crimping range(mm)4-65
Die typeS6
master die length(mm)64
Max opening(mm)1+25
Hand pumpHand pumpor air pump
crimping force(KN)2000
DIMENSIONS
| Machine(mm) | 200x250x310 |
|---|---|
| Machine(inch) | 7.9x9.8x12.2 |
| Packaged(mm) | 640x510x430 |
| Packaged(inch) | 25.2x20.1x16.9 |
WEIGHT
| Machine(kg/lbs) | 45/99 |
|---|---|
| Packaged(kg/lbs) | 60/132 |
DIE SET 20-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-17.0 |
| 18506/17 | 17 | 55 | 17.0-20.0 |
| 18506/20 | 20 | 55 | 20.0-24.0 |
| 18506/24 | 24 | 55 | 2840-28.0 |
| 18506/28 | 28 | 75 | 28.0-33.0 |
| 18506/32 | 32 | 75 | 32.0-36.0 |
| 18506/36 | 36 | 75 | 36.0-40.0 |
| 18506/40 | 40 | 90 | 40.0-44.0 |
| 18506/44 | 44 | 90 | 44.0-50.0 |
| 18506/50 | 50 | 90 | 50.0-52.0 |
| 18506/52 | 52 | 90 | 52.0-58.0 |
| 18506/58 | 58 | 90 | 58.0-64.0 |
