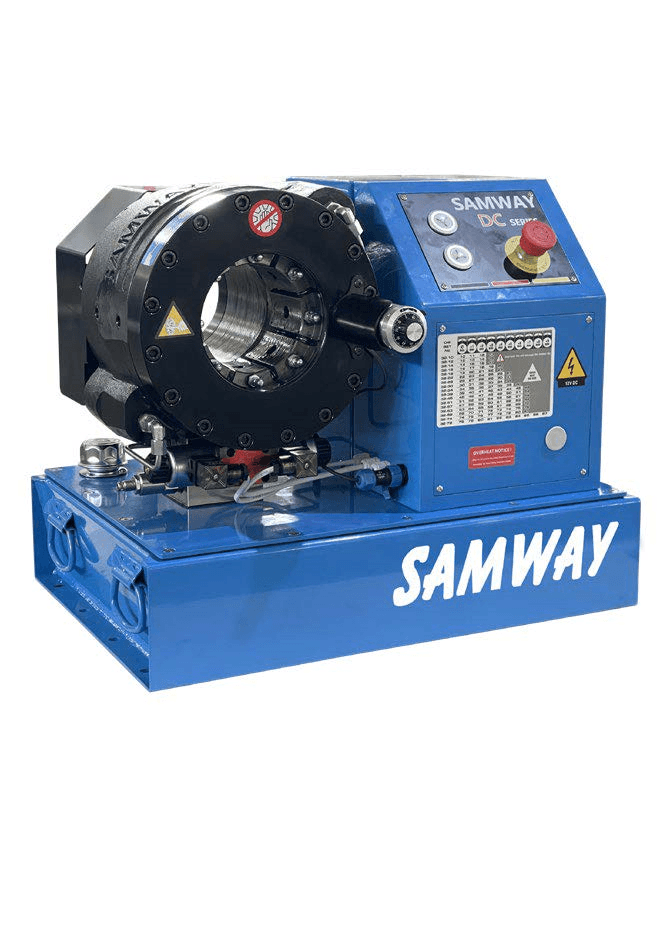

SAMWAY P20DC CRIMPING MACHINE
Model: P20DC
* Compact Design for use in a Van or Truck * 12V/24V DC by Battery Power * Up to 1 1/4”SP hydraulic hose
Options & Accessories
| Options | |
|---|---|
| 12v/24v DC |
Technical Specifications
Max crimping dia (mm/inch)87/3.42
Max crimping dia with master dies(mm/inch)109/4.3
Max crimping force(KN)1600
Max crimping force(tannage)160
Hydraulic hose size(inch)1 1/2*
Industrial hose size(inch)2.40*
Die set series32
Max opening(mm)2)+25
Max opening without dies(mm)124
Master die D/L(mm)99/80
Master die D/L(inch)Motor power3.90/3.15
Motor power3.0/4.0 1.5/2.0 (12/24V DC)
Oil Tank Volume25L
OPTION
| Back Stop Device |
|---|
| Camera and monitor |
| Custmized die sets |
| custmized voltage |
| custmized logo |
DIMENSIONS
| Machine (mm) | 820x700x650 |
|---|---|
| Machine(inch) | 32.3x27.6x25.6 |
| Packaged(mm) | 920x800x800 |
| Packaged(mm) | 36.2x31.5x31.5 |
WEIGHT
| Machine(kg/lbs) | 220/485 |
|---|---|
| Packaged(kg/lbs) | 240/529 |
DIE SET 20-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 60 | 10.1-12.0 |
| 18506/12 | 12 | 60 | 12.0-14.0 |
| 18506/14 | 14 | 60 | 14.0-16.0 |
| 18506/16 | 16 | 60 | 16.0-19.0 |
| 18506/19 | 19 | 60 | 19.0-22.0 |
| 18506/22 | 22 | 75 | 22.0-26.0 |
| 18506/26 | 26 | 75 | 26.0-30.0 |
| 18506/30 | 30 | 75 | 30.0-34.0 |
| 18506/34 | 34 | 80 | 34.0-39.0 |
| 18506/39 | 39 | 80 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 69.0-74.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
