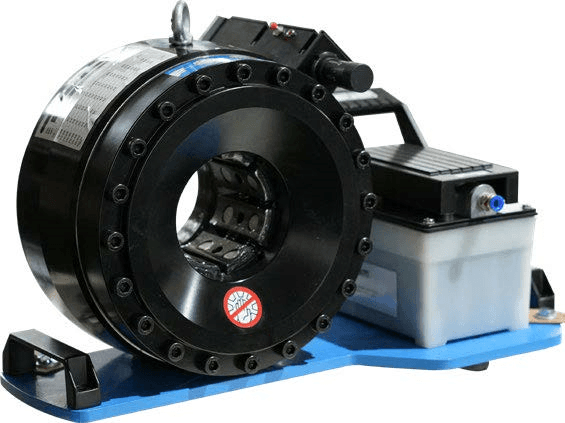

SAMWAY P20AP CRIMPING MACHINE
Model: P20AP
* Portable 1 ½” Crimper * No electricity required * Air pump * Complete Die Set
Options & Accessories
| Options | |
|---|---|
| Electrical pump | 220v 1 phase/400v 3 phase |
| hand pump | custimized die sets |
| custimized logo |
Technical Specifications
Max crimping dia (mm/inch)70/2.76
Max crimping dia with master dies(mm/inch)109/4.3
Max crimping force(KN)2000
Max crimping force(tannage)200
Hydraulic hose size(inch)1 1/2*
Industrial hose size(inch)2.40*
Die set seriesS6
Max opening(mm)2)+25
Max opening without dies(mm)95
Master die D/L(mm)70/80
Master die D/L(inch)Motor power2.76/3.15
Motor powerAir pressure
OPTIONS
| Back Stop Device |
|---|
| Camera and monitor |
| Custmized die sets |
| custmized voltage |
| custmized logo |
DIMENSIONS
| Machine (mm) | 320x250x250 |
|---|---|
| Machine(inch) | 13.8x9.8x9.8 |
| Packaged(mm) | 640x510x430 |
| Packaged(mm) | 25.2x20.1x16.9 |
WEIGHT
| Machine(kg/lbs) | 100/200 |
|---|---|
| Packaged(kg/lbs) | 123/271 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.1-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
