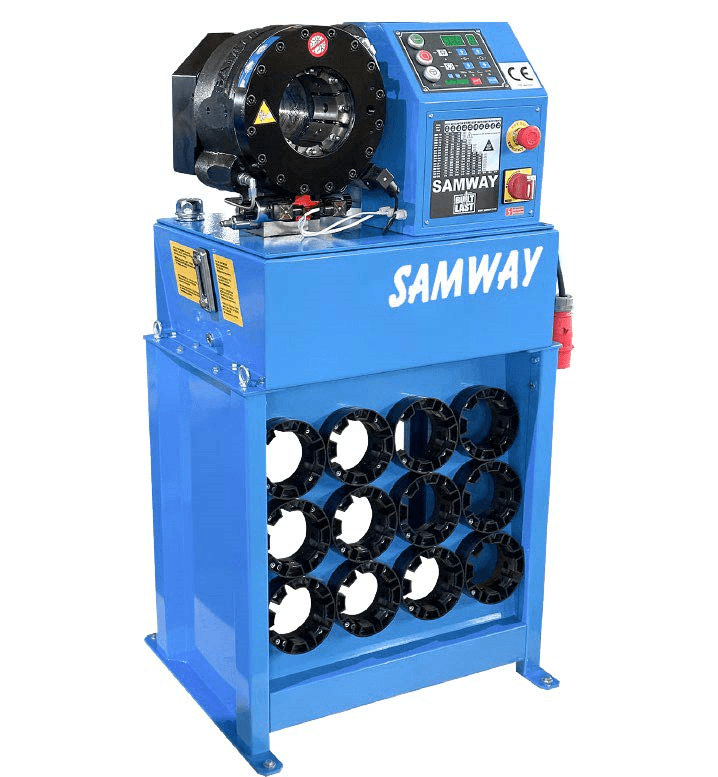

SAMWAY P20D CRIMPING MACHINE
Model: P20D
* Digital Precision Control * Quick Change Tool and Die rack * Energy Saving and Safety Operation * TUV CE Approved
Options & Accessories
| Options | |
|---|---|
| back stop device | camera and monitor |
| custimized die sets | custimized voltage |
| custimized logo | 110v/220v 1 phase |
| 230v/440v/480v 3 phase |
Technical Specifications
Max crimping dia (mm/inch)87/3.42
Max crimping dia with master dies(mm/inch)109/4.3
Max crimping force(KN)1600
Max crimping force(tannage)160
Cycle time 10 mm(S)2)3)4
Hydraulic hose size(inch)1 1/2*
Industrial hose size(inch)2.40*
Die set series32
Max opening(mm)4)+25
Max opening without dies(mm)124
Master die D/L(mm)99/80
Master die D/L(inch)3.90/3.15 (400V 3 Phase)
Oil tank volume45
OPTIONS
| Back stop device |
|---|
| Camera and Monitor |
| Custmized die sets |
| custmized voltage |
| custmized logo |
| 110V/220V 1 Phase |
| 230V/440V/480V 3 Phase |
DIMENSIONS
| Machine (mm) | 680x600x1450 |
|---|---|
| Machine(inch) | 26.8x23.6x57.1 |
| Packaged(mm) | 820x1250x980 |
| Packaged(mm) | 32.3x49.2x38.6 |
WEIGHT
| Machine(kg/lbs) | 270/595 |
|---|---|
| Packaked(kg/lbs0 | 300/661 |
