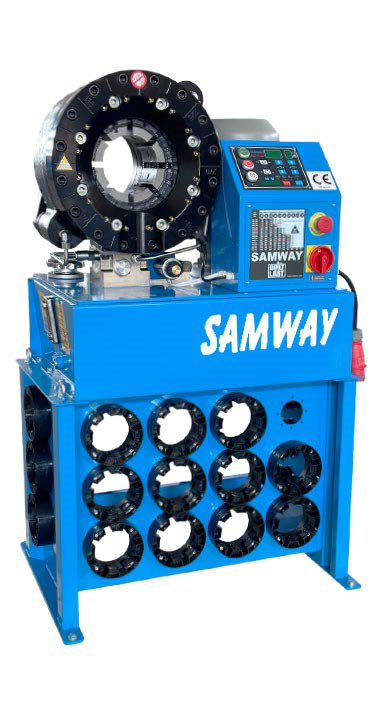

SAMWAY P50 CRIMPING MACHINE
Model: P50
* Up to 4″ Industrial Hose * No axial movement! * Opening Plus 60mm+ * Digital Control * Quick Change tool and die rack
Options & Accessories
| Options | |
|---|---|
| 110v/220v 1 phase | 230v/440v/480v 3 phase |
Technical Specifications
Max crimping dia(mm)1)124
Max crimping dia(inch)1)4.88
Max crimping force(KN)4200
Max crimping force(tonnage)420
Cycle time 10(mm)2)5.8
Hose size ID (inch)2 1/2*
Die set series32/140
Max opening(mm)3)+60
Max opening without dies(mm)200
Master die D/L(mm)140/120
Master die D/L(inch)5.52-4.73
Motor power (KW/HP)3)4.0/5.5 1.5/2.0 (400V 3 phase)
Oil tank volume50L
OPTIONS
| 110V/220V 1 phase |
|---|
| 230V/440V/480V 3 phase |
DIMENSIONS
| Machine(mm) | 760x650x1490 |
|---|---|
| Machine(inch) | 29.9x25.6x58.7 |
| Packageda(mm) | 1040x1020x1560 |
| Packaged9inch) | 40.9x40.2x61.4 |
WEIGHT
| Machine(kg/lbs) | 550/1213 |
|---|---|
| Packaged(kg/lbs) | 600/1323 |
DIE SET 140-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.rang(mm) |
|---|---|---|---|
| 18860/84 | 84 | 110 | 84.0-92.0 |
| 18860/92 | 92 | 110 | 92.0-100.0 |
| 18860/100 | 100 | 110 | 100.0-108.0 |
| 18860/108 | 108 | 110 | 108.0-116.0 |
| 18860/116 | 116 | 110 | 116.0-124.0 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.rang(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
