Production crimping Machine

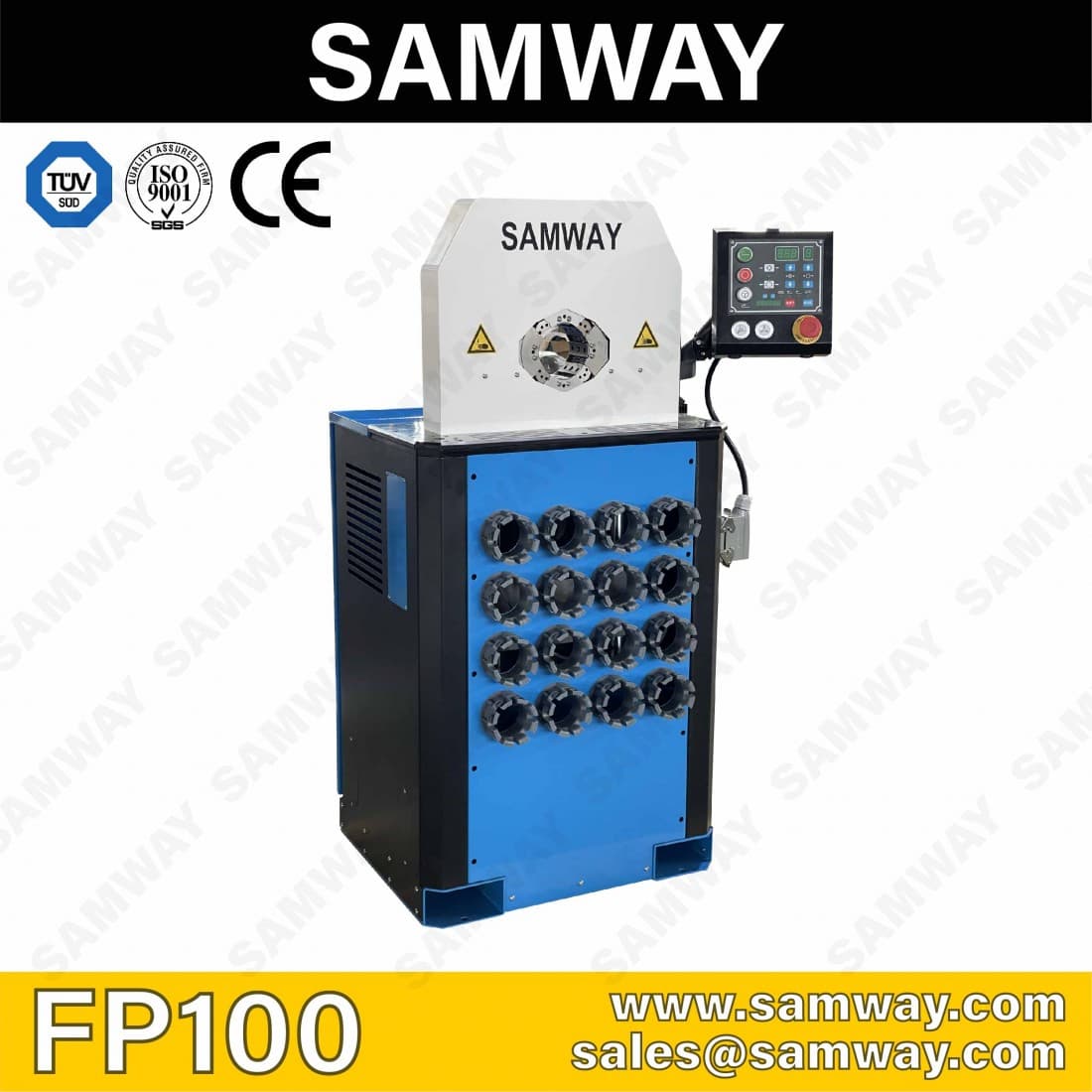

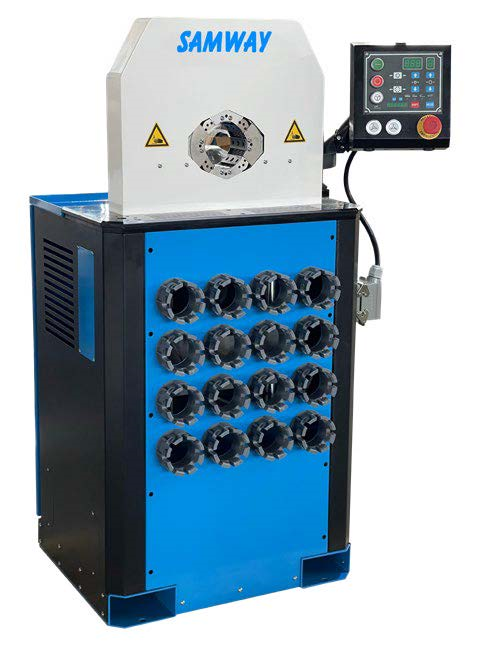

SAMWAY FP100 CRIMPING MACHINE
Model: FP100
* Precision Digital Control * Quick Change Tool and Die rack * Designed for Mass Production * Energy Saving and Fast Crimping * CE Approved
Technical Specifications
Max Hydraulic Hose 1 1/4'' 4SH*1 piece fitting
Crimping Range mm4-55
Die TypeHM220
Master Die Length mm75
Max Opening mm+35
Motor KW 400V/230V 3P 4KW
Crimping Force KN1350
Crimpings Per Hour1500
Control Precision Digital Control
Foot pedalIncluded
Die RackIncluded
Quick Change ToolIncluded
Protection ClassIP56
DIMENSIONS (LxWxH)
| Machine (mm) | 700x580x1500 |
|---|---|
| Machine (Inch) | 2706x22.8x59.1 |
| Packaged (mm) | 800x680x1600 |
| Pakaged (inch) | 31.5x26.8x63.0 |
WEIGHT
| Machine (kg/lbs) | 380/838 |
|---|---|
| Packaged (kg/lbs) | 395/87.1 |
DIE SET 35-SERIES
| DieSet No. | D (mm) | L (mm) | Crimp.Range (mm) |
|---|---|---|---|
| 18506/14 | 14 | 60 | 14.0-17.0 |
| 18506/17 | 17 | 60 | 17.0-20.0 |
| 18506/20 | 20 | 60 | 20.0-24.0 |
| 18506/24 | 24 | 60 | 24.0-28.0 |
| 18506/28 | 28 | 75 | 28.0-32.0 |
| 18506/32 | 32 | 75 | 32.0-40.0 |
| 18506/40 | 40 | 75 | 40.0-44.0 |
| 18506/44 | 44 | 75 | 44.0-50.0 |
| 18506/50 | 50 | 75 | 50.0-56.0 |
