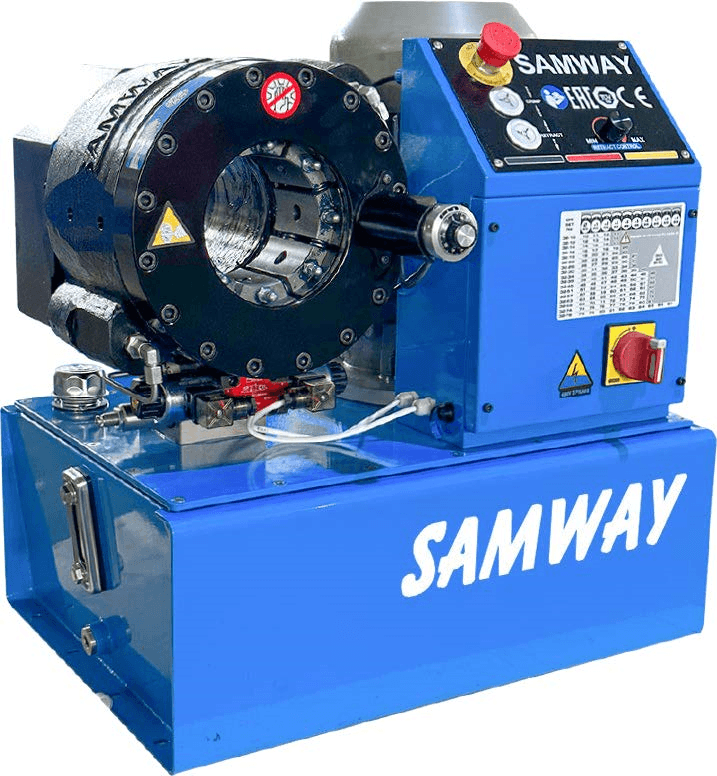

SAMWAY P20 CRIMPING MACHINE
Model: P20
* Full Automatic Control with foot pedal * Quick Change Tool and Die rack οΌOptionalοΌ * Energy Saving and Safety Operation * TUV CE Approved
Options & Accessories
| Options | |
|---|---|
| back stop device | camera and monitor |
| custimized die sets | custimized logo |
| custimized voltage | 110v/220v 1 phase |
| 230v/440v/480v 3 phase |
Technical Specifications
Max Crimping Dia(mm/inch)1)87/3.42
Max crimping dia with master dies(mm/inch)109/4.3
Max crimping force(KN)1600
Max crimping force(tonnage)160
Cycle time 10mm(S)2)3)4
Hydraulic hose size(inch)1 1/2*
Industrial hose size(inch)2.40
Die set series32
Max opening(mm)4)+25
Max opening without dies(mm)124
Master die D/L (mm)99/80
Master die D/L (inch)3.90/3.15
Motor power(KW/HP)3)3.0/4.0 1.5/2.0 (400V 3 Phase)
Oil tank volume45
OPTIONS
| Back stop device |
|---|
| Camera and monitor |
| Custmized die sets |
| Custmized logo |
| Custmized voltage |
| 110V/220V 1 Phase |
| 230V/440V/480v 3 phase |
DIMENSIONS
| Machine(mm) | 680x600x650 |
|---|---|
| Machine(inch) | 26.8x23.6x25.6 |
| Packaged(mm) | 740x640x840 |
| Packaged(inch) | 29.1x25.2x33.1 |
WEIGHT
| Machine(kg/lbs) | 200/441 |
|---|---|
| Packaged(kg/lbs) | 230/507 |
DIE SET 32-SERIES
| DieSetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-78.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
