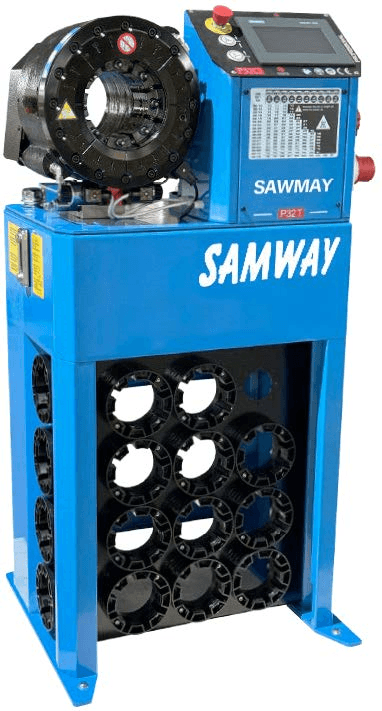

SAMWAY P32T CRIMPING MACHINE
Model: P32T
* Full Automatic Control with foot pedal * Up to 2″4SP Hydraulic Hose * Energy Saving and Safety Operation
Options & Accessories
| Options | |
|---|---|
| back stop device | pressuree control |
| camera and monitor | custimized die sets |
| custimized voltage | custimized logo |
| 110v/220v 1 phase | 230v/440v/480v 3 phase |
Technical Specifications
Max crimping dia(mm/inch)187/3.42
Max crimping dia with master dies (mm/inch)109/4.3
Max crimping force(KN)2800
Max crimping force(tonnage)280
Cycle time 10mm(S)2)3)4
Hydraulic hose size(inch)2*
Industrial hose size(inch)3.42*
Die set series32
Max opening (mm)4)+32
Max opening without dies(mm)132
Master die D/L (mm)99/80
Master die D/L(inch)3.90/3.15
Motor power(KW/HP)3)4.0/5.5 1.5/2.0 (400V 3 phase)
Oil Tank volume40L
OPTIONS
| Back stop device |
|---|
| Pressure control |
| Camera and monitor |
| custmized die sets |
| custmized voltage |
| custmized logo |
| 110v/220v 1 phase |
| 230v/440v/480v 3 |
DIMENSIONS(LXWXH)
| Machine (mm) | 680x630x1450 |
|---|---|
| Machine(inch) | 26.8x24.8x57.1 |
| Packaged(mm) | 780x730x1550 |
| Packaged(inch) | 30.7x28.7x61.0 |
WEIGHT
| Machine(kg/lbs) | 370/816 |
|---|---|
| Packaged(kg/lbs) | 380/838 |
DIE SET 32-SERIES
| DiesetNo | D(mm) | L(mm) | Crimp.range(mm) |
|---|---|---|---|
| 18506/10 | 10 | 55 | 10.0-12.0 |
| 18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63 |
| 18506/63 | 63 | 110 | 63.0-69.0 |
| 18506/69 | 69 | 110 | 69.0-74.0 |
| 18506/74 | 74 | 110 | 74.0-80.0 |
| 18506/78 | 78 | 110 | 78.0-87.0 |
