Production crimping Machine

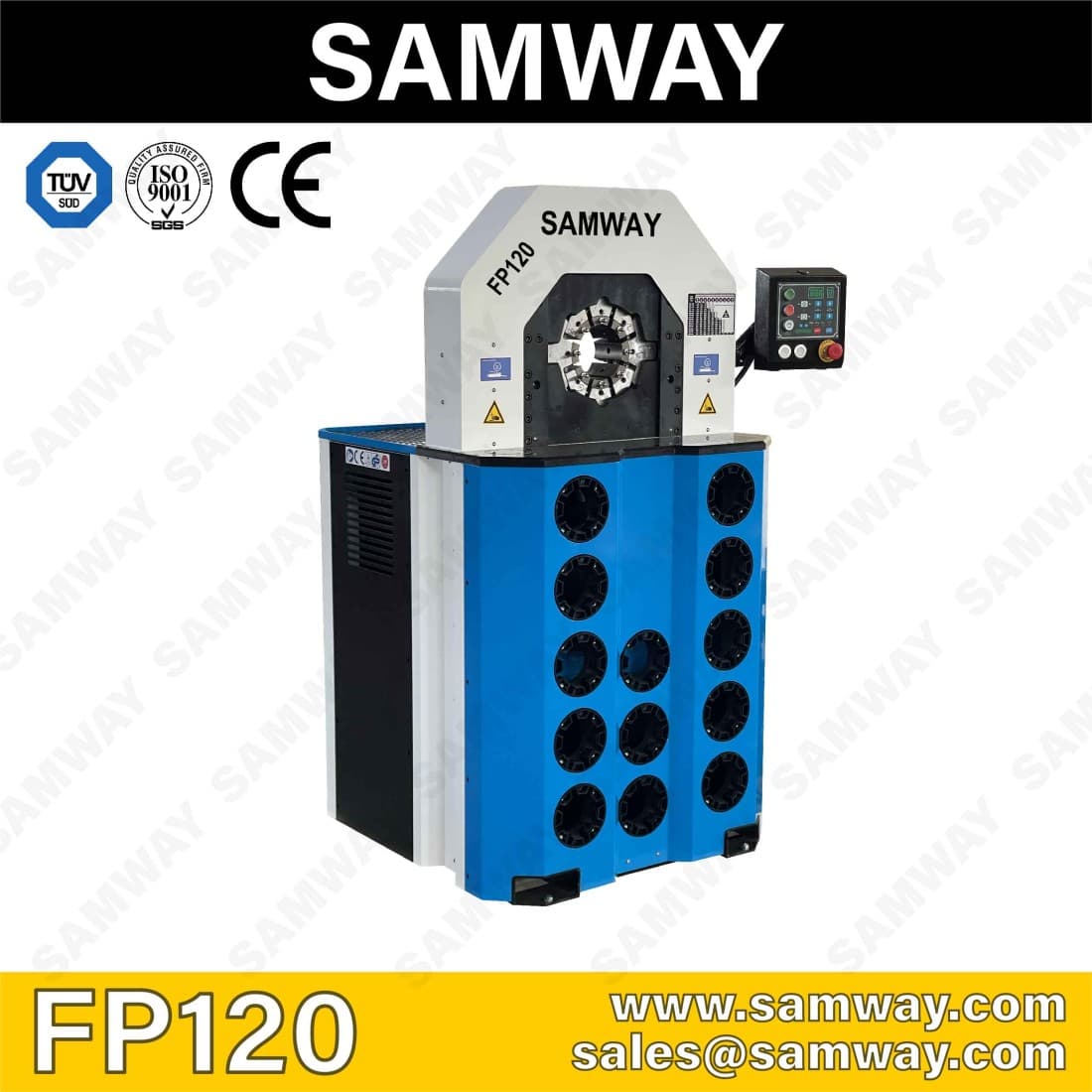

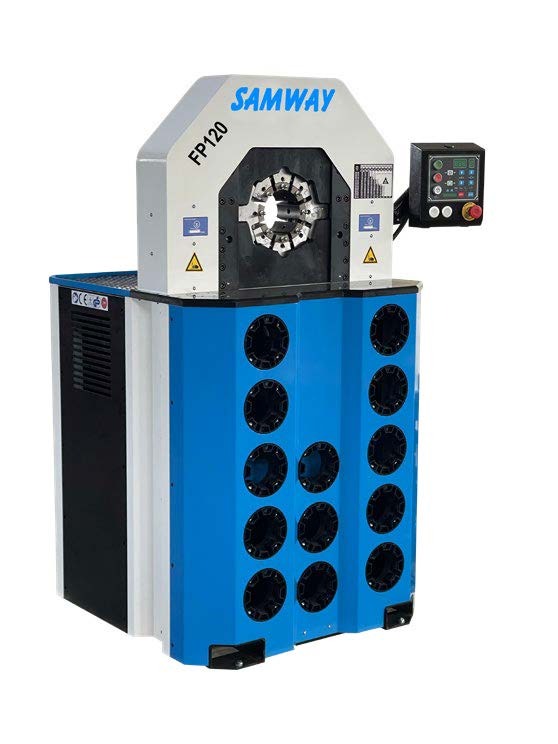

SAMWAY FP120 CRIMPING MACHINE
Model: FP120
* Precision Digital Control *Quick Change Tool and Die rack *Designed for Mass Production *Energy Saving and Fast Crimping *CE Approved
Technical Specifications
Max crimping dia (mm/inch) 1) 87/3.42
Max crimping dia with master dies (mm/inch) 109/4.3
Max. crimping force (kN)2800
Max. crimping force (tonnage)280
Cycle time 10 mm (s) 2)1.8 (S-model: 1.6)
Hydraulic hose size (inch) 2 *
Industrial hose size (inch)3.42 *
Die set series 3)32
Max. opening (mm) 4) +78
Max. opening without dies (mm) 167
Master die D/L (mm) 99/97
Master die D/L (inch) 3.90/3.82
Motor Power (kW/HP) 4/5.4 (400V 3 Phase)
Oil tank volume 135 L
Dimensions ( LxWxH )
| Machine (mm) | 800x1000x1600 |
|---|---|
| Machine (Inch) | 33.9x39.4x63.0 |
| Packaged (mm) | 1050x1050x1780 |
| Packaged (inch) | 41.3x41.3x70.1 |
Weight
| Machine (kg/lbs) | 1250/2756 |
|---|---|
| Packaged (kg/lbs) | 1400/3086 |
DIE SET 32-SERIES
| Dieset No | D (mm) | L (mm) | Crimp. Range (mm) |
|---|---|---|---|
| *18506/10 | 10 | 55 | 10.0-12.0 |
| *18506/12 | 12 | 55 | 12.0-14.0 |
| 18506/14 | 14 | 55 | 14.0-16.0 |
| 18506/16 | 16 | 55 | 16.0-19.0 |
| 18506/19 | 19 | 55 | 19.0-22.0 |
| 18506/22 | 22 | 70 | 22.0-26.0 |
| 18506/26 | 26 | 70 | 26.0-30.0 |
| 18506/30 | 30 | 70 | 30.0-34.0 |
| 18506/34 | 34 | 75 | 34.0-39.0 |
| 18506/39 | 39 | 75 | 39.0-45.0 |
| 18506/45 | 45 | 90 | 45.0-51.0 |
| 18506/51 | 51 | 90 | 51.0-57.0 |
| 18506/57 | 57 | 100 | 57.0-63.0 |
| 18506/63/110 | 63 | 110 | 63.0-69.0 |
| 18506/69/110 | 69 | 110 | 69.0-75.0 |
| 18506/74/110 | 74 | 110 | 74.0-80.0 |
| 18506/78/110 | 78 | 110 | 78.0-87.0 |
